Gloss Meter

gloss meter models: GM-268, GM-026, GM-06

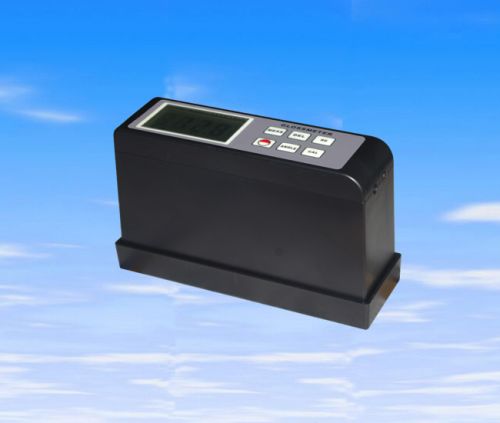

GM-268
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection,Surface inspection
of plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.
Model No:GM-268（optional: GM-6,GM-26)
TECHNICAL SPECIFICATIONS
Display:4 digits backlit LCD
Measuring geometry:206085 Degrees (GM-6：60Degrees，GM26：20Degrees and 60Degrees)
Range: 0.1 to 200 gloss units
Accuracy:±1.0 gloss unit
( against reference standard )
Resolution: 0.1 gloss unit
Repeatability: ±0.5 GU(0 ... 99.9)
Measuring area: mm ellipse
Data memorized: groups
Data output: RS 232 C serial interface
Power supply: battery:4×1.5VAAA
Dimensions:
main unit:156 x67x28mm
Separate sensor:58x28x108mm
Working condition:
Temperature range 0 - 40℃
Humidity up to 85%
