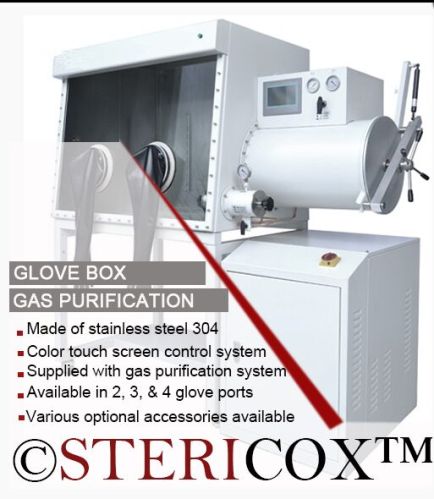

Glove Box With Gas Purification System

OptionalAutomatic humidity control of 1% to 99% RH, Automatic pressure controller, Automatic controller for Oxygen 200PPM-21%, Vacuum pump .
Reserved interfaceReserved KF40 interface on the rear side to upgrade the glove box any time
Moisture concentration0ï½1000ppm, with an accuracy of 0.1ppm
Gas purification systemWith purification column (contain BASF copper catalyst materials & UOP efficient absorbent molecular sieve materials) and closed loop gas re-circulation system to maintain gas purity O2&H2O≤1ppm
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Window panelInclined panel of temperature glass of 10 mm
FilterInlet and outlet HEPA filters of >0.3µm
LightBuilt-in fluorescent lamp
Control systemColor touch screen PLC HMI of SIEMENS make
Gas purification systemWith purification column (contain BASF copper catalyst materials & UOP efficient absorbent molecular sieve materials) and closed loop gas re-circulation system to maintain gas purity O2&H2O≤1ppm
OptionalAutomatic humidity control of 1% to 99% RH, Automatic pressure controller, Automatic controller for Oxygen 200PPM-21%, Vacuum pump .
Material of constructionStainless steel 304 3mm
Oxygen concentration0ï½1000ppm, with an accuracy of 0.1ppm
Moisture concentration0ï½1000ppm, with an accuracy of 0.1ppm
GlovesButyl gloves with O ring sealed (GUARDIAN brand USA)
ShelvesStainless steel 304 adjustable shelves (2 no. standard) 800*200 mm
Reserved interfaceReserved KF40 interface on the rear side to upgrade the glove box any time

TECHNICAL SPECIFICATIONS

Model	STX-GBP2	STX-GBP3	STX-GBP4
Main chamber (LWH)	1220760900 mm	1500760900 mm	1900760900 mm
Antechamber (Dia.*L)	385*600 mm	385*600 mm	385*600 mm
Mini Antechamber (Dia.*L)	150*300 mm	150*300 mm	150*300 mm
Glove ports	2 Nos.	3 Nos.	4 Nos.
