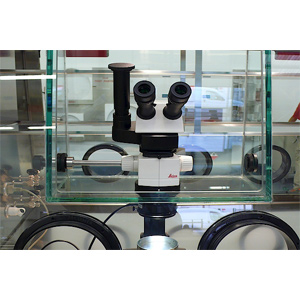

We can fit a microscope to a glove box in order to provide our users a facility to load air or moisture sensitive samples on the microscope without outside exposure. Our glove box units allow precise control of environmental conditions for high resolution imaging.
Options
If a client approaches us for a glove box to be used for microscopic observations, we provide him customized unit with two options: a. we fit their microscope into the glove box or b. provide a view port, in which client can get the microscope fixed by any technician.
| Model | BST/GBM/VGB-2 | BST/GBM/VGB-2Y |
|---|---|---|
| Pressure Controller | No | Yes |
| Digital Vacuum Pressure Gauge | No | Range: 0 to 101Kpa (Absolute Pressure) |
| Valves | Three manual valves | Three manual valves Two solenoid valves |
| Microscope Fitting | Microscope view port with Flexible or movable Eyepiece | |
| Construction | Acrylic sheet | |
| Glove Box Dimension (mm) | 1150 L x 500 W x 500 H | |
| Containment Chamber(mm) | 875 L x 480 W x 500 H | |
| Air Lock Chamber(mm) | 230 L x 230 W x 230 H | |
| Plastic thickness | 6 mm | |
| Side Door size | 400 mm diameter | |
| Glove port's size | 151 mm Dia | |
| Pressure Range | Main Chamber - 90Kpa ˜ 120Kpa Air Lock Chamber - 10Kpa ˜ 120Kpa | |
| Glove Ports | Two-Port Glove box (One Operator) | |
| Standard accessories | - Analog Pressure gauge: 01 No. - Internal plug strip: 01 No. - Latex Gloves: 01 pair | |
| Optional Accessories | - Butyl Rubber Gloves - Three/Four-Port Glove box (Same-Side Ports) - Four-Port Glove box (Back-to-Back Ports) - Oil free vacuum pump & fittings - Spare port (G 1/4 female) - Shelf - Extra Internal plug Strip - Arrangement for Weighing Balance / Hot Plate - Stand (Powder Coated MS / Stainless Steel) | |
