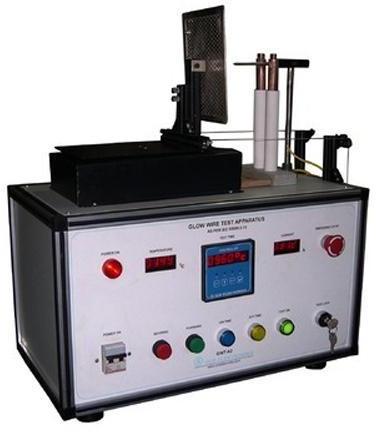

Glow Wire Test Apparatus

Temperature rangeAmbient to 960ºC
ThermocoupleFine wire chromel / alumel thermocouple of approximately 0.5 mm diameter
Depth of penetration of glow wireMechanically limited to 7 mm
Time ControllerMicro-controller based programmable timer 0 to 999sec
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Precision scalePrecision scale is provided to measure the height of the flame
ThermocoupleFine wire chromel / alumel thermocouple of approximately 0.5 mm diameter
IS 11000 (Part 2/Section 1) - 1984 / IEC 695 2 1 - 1980Fire Hazard Testing, Part 2 : Test Methods, Section 1 : Glow wire test and guidance
Depth of penetration of glow wireMechanically limited to 7 mm
Temperature rangeAmbient to 960ºC
Time ControllerMicro-controller based programmable timer 0 to 999sec
Glow wireNickel / Chromium wire (80/20) of 4 mm diameter

Glow wire test apparatus is designed and developed to test resistance to flammability of any material. It is checked on the parameter of IEC 60695-2-10 2000-10. Our glow wire test apparatus consists of a nichrome glow wire of 4 mm diameter. This glow wire test apparatus is available in varied technical specifications. This glow wire test apparatus is available in different models and specifications to meet the needs of the application.

Salient Features :

Nickel / Chromium based heating element (glow wire)
Cr/Al based fine wire based thermocouple for temperature sensing
Temperature Range: Adjustable up to 960° centigrade
A motorized sliding carrier with an universally adjusted SS perforated tray is provided to mount the specimen
Self adjusting constant current mode operation as soon as heater-specimen contact is established
Motor brings the jig back to the pre-test position automatically as soon as the test is concluded
Fully Automated Panel
A favorite of Industry Giants for testing of sockets, circuit breakers, switches and other accessories against flammability
