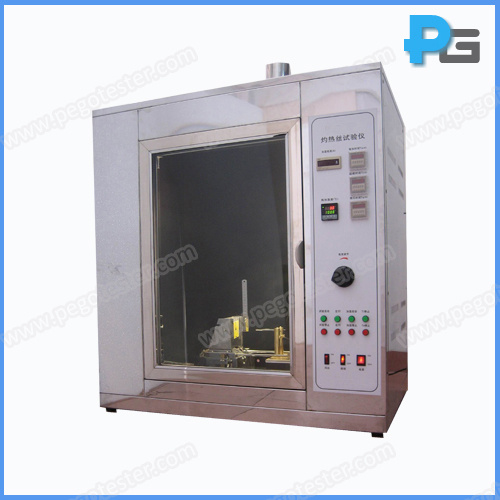

Glow Wire Test Apparatus, Brand Name : Pegogroup

We are offering glow wire test apparatus
it’s strictly designed according to iec60695-2-1, iec60695-2-10, iec60695-2-13, (gbt5169.10-2006~gbt5169.13-2006) and ul746a, iec829, din695, and vde0471 etc. The glow wire tester pg-z17 is suitable for resistance to abnormal heat and fire test on lighting lamps, electronic products and household appliances. Adopting high-temperature coating spraying on steel structure and imported instrument display, with easy operation and stable performance. The equipment is applicable to flame resistance tests of all levels of qc departments and corresponding enterprises.
Specification
glow wire temperature: adjustable continuously within the range of 500~1000℃, the resolution of temperature is ±2℃
glowing time: 0.1~999.9s, ±0.1s (time range is adjustable)
burning time: 0.1~999.9s, auto record & manual pause
flame chilling time: 0.1~999.9s, auto record & manual pause
glow wire pressure on test specimen: 1±0.2n. Limiting pressure depth is 7mm
glow wire: φ4mm nickel 80% chromium 20% which made in specific dimensions
thermocouple diameter: φ0.5 armored nickel & chromium nickel-chromium wire, k degree
