Automatic GLSUN 1x4 Fiber Optical Switch, Certification : ISO9001

₹ 90.50 / 100 100 Piece

MOQ1 Piece(s)
MaterialFiber
Automatic GradeAutomatic
CertificationISO9001
ConditionNew
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerFiber Optical Switch
MaterialFiber
CertificationISO9001
Applicationfiber optic monitoring
ConditionNew
Automatic GradeAutomatic
Total Carbohydrate1yr
Wavelength Range850±40 / 1300±40 1260 ~ 1650
Insertion Loss 1, 2≤ 1.0
Crosstalk 1≥ 55
Return Loss 1, 2MM ≥ 30 SM ≥ 50
Test Wavelength850 / 1300 1310 / 1550

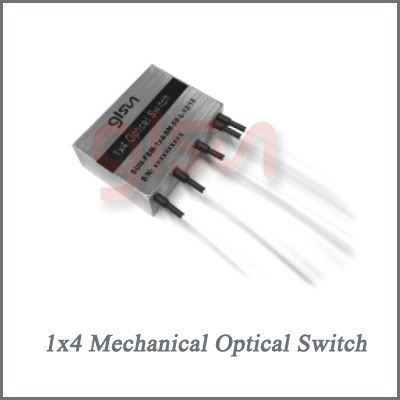

GLSUN 1x4 Fiber Optical Switch

Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)

Specifications
Parameters Unit SUN-FSW-1×4
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Insertion Loss 1, 2 dB ≤ 1.0
Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50
Crosstalk 1 dB ≥ 55
PDL dB -- SM ≤ 0.05
WDL dB ≤ 0.25
Repeatability dB ≤ ±0.02
Operating Voltage V 3.0 or 5.0
Voltage Pluse Width(Latching) ms ≥ 20
Durability Cycles ≥ 10 Million
Switching Time ms ≤ 8
Optical Power mW ≤ 500
Operating Temperature ℃ 0 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm (L)33.5×(W)25.5×(H)9.7 ±0.2
