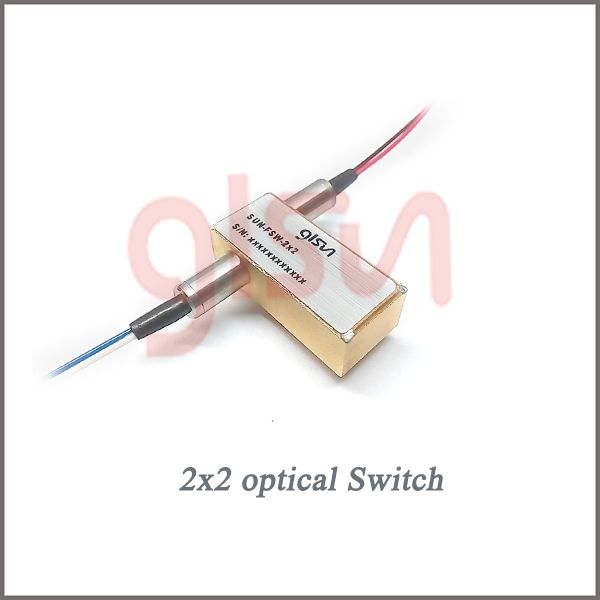

Automatic GLSUN C2x2BG Mechanical Optical Switch

GLSUN C2x2BG Mechanical Optical Switch
Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Applications
R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)
Network Security and Monitoring

Specifications
Parameters Unit SUN-FSW-C2×2BG
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Insertion Loss 1, 2 dB ≤ 0.8
Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50
Crosstalk 1 dB MM ≥ 35 SM ≥ 55
PDL dB -- SM ≤ 0.05
WDL dB ≤ 0.25
Repeatability dB ≤ ±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥10 Million
Weight g 13
