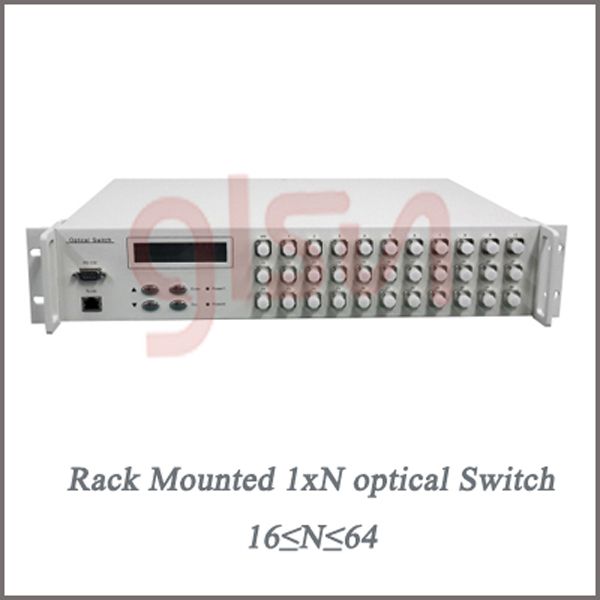

Automatic Fiber GLSUN Rack Mounted 1N(16N64) Optical Switch

introduction

1×n rack-mounted optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via rs232 port, ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

features

low insertion loss and fast switching

serialnet, high reliability, high stability

lcd display

rs232 control and ethernet remote management

applications

fitl

automatic measurement

optical network remote monitoring

cable monitoring and maintaining system

specification

parameterunitsun-fsw-1×n-2u (16≤n≤64)

wavelength rangenm850±40 / 1300±401260 ～1650

test wavelengthnm850 / 13001310 / 1550

insertion lossdbtyp:≤1.0 max≤1.2

return lossdbmm≥30 sm≥45

crosstalkdb≥55

pdldb≤0.1

wdldb≤0.25

repeatabilitydb≤±0.05

durabilitycycles≥ 107

optical powermw≤500

switching timems≤10(sequence switch time of adjacent channel)

operating temperature℃-5～+55

storage temperature℃-40～+80

relative humidity%5 ~ 95
