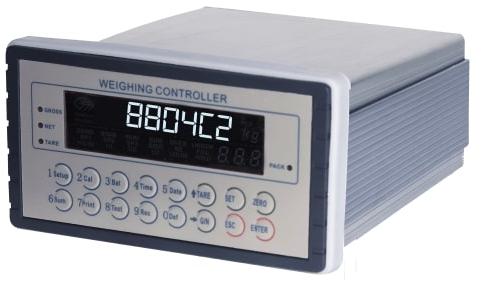

GM8804C-2 Bagging Controller

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

GM8804C-2 is a bagging or packaging controller that incorporates several patented key technologies. This controller controls with a material hopper or without material hopper application. The....

View More Details

Send Enquiry

Company Information

Prompt Equipments Pvt Ltd

Navrangpura, Ahmedabad, Gujarat

View Number

Member Since 4 Years
Nature of Business Manufacturer
Year of Establishment 1979

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

GM8804C-2 is a bagging or packaging controller that incorporates several patented key technologies. This controller controls with a material hopper or without material hopper application. The automatic three-speed functioning ensures an excellent balance between speed and precision. This bagging controller is ideal for grain, chemical, and fertilizer industries.
Key Features

CE approved
Suitable for all packaging applications with or without a material hopper
System Self Diagnostics for I/O ports to simplify installation and maintenance
20 I/O control (8 inputs and 12 outputs)
Perfect balance between speed and precision with automatic three-speed feeding
Advanced free fall compensation algorithm for extremely precise result every time
Smart calibration without weights
20 recipes can be stored for different weighing capacity
Patent-pending two-layer advanced digital filtering algorithm
Two serial communication ports to connect with computer, printer and/or a second display

Product Highlights

CE Approved
High Accuracy
Anti Vibration
IP65 Protection
Advance digital filtering

Brochure

Download Detail File : Click Here

Specification

INDICATOR POWER
Power Supply	90V～260V AC 50Hz(or 60Hz)±2%
Power Consume	15W
A/D CONVERTER
Type	24-bit Delta-Sigma
Analogue input range	0.2mV to 37mV
Linearity	<0.01%FS
Gain Drifting	10PPM/℃
Minimum Sensitivity	0.5 µ V/d
Conversion Rate	120/s
Display Accuracy	1 / 30,000
DISPLAY & KEYBOARD
Main Display	6 digits, 7 segments, VFD
Sub Display	3 digits, 7 segments, VFD
Keyboard	16 buttons with beeping feedback
Status Indicators	(18 VFD indicator) ZERO, STAB, RUN, SUM, OVER, UNDER, SP1, SP2, SP3, DISC, NZ, FILL, HILIM, HI, GO, LO, LOLIM, HOLD
LED Status	Gross, Net, Tare, Pack
CALIBRATION & WEIGHING FUNCTIONS
Calibration	By test weight or by electronic calibration
Digital Filter	Multiple FIR filters with 9 selectable levels
Weighing Functions	zero, zero tracking, auto-zero at power
ENVIRONMENTAL
Operating Temperature	-10℃ to 40℃
Storage Temperature	-25℃ to 70℃
Relative Humidity	90% R.H without dew
IP Level	Front panel IP 65
LOAD CELLS
Excitation	12V
Load Cells	Drives 8pcs Load Cells 350Ω
MECHANICAL DATA
Dimensions & Weight	165×181×98 mm (L×W×H) weight approx. 2.5kgs
Standard Mounting	Panel Mount
Certification	CE
Enclosure	ABS front panel, cast aluminium body
DIGITAL INPUT
Input Number	8
Input Functions	(12 Self-defined functions) Start, Stop, Zero, Clear Alarm, Change Recipe, Clip/Loose bag, Manual discharge, Manual fine feeding, Print, Key locker, Hi-limit, low-Limit
DIGITAL OUTPUT
Output Number	12
Output Functions	(15 Self-defined functions) Run, Stop, High-feeding, Middle-feeding, Fine-feeding, Fixing-value, Over, Alarm, Clip bag, Punching bag, Discharge, Near zero, Supply material, Batch complete, Material short
PRINT FUNCTION
Print	RS232 Port
UART RS232/RS485 INTERFACE
BUS	Standard Modbus RTU
CONT	Sending Continuous (General Measure Protocol)
READ	Read and Response mode (General Measure Protocol)
PACKING FUNCTION
Feeding	3 Feeding Speed, Jog-feeding supported
Packing Mode	With Bin mode, Without Bin mode
Recipe	20 recipes
Speed	10-16 Packs/min up to 50Kg/pack
Accuracy	≤0.5%
Extra	Free fall self-adjust, Punching bag functionBatching packing
