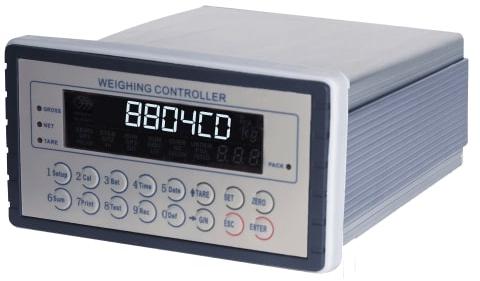

GM8804C-D Bagging Controller

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

GM8804CD is a revolutionary dual-hopper packaging controller that is also the first of its kind in the world. This packaging controller is developed with key technologies that promise high....

View More Details

Send Enquiry

Company Information

Prompt Equipments Pvt Ltd

Navrangpura, Ahmedabad, Gujarat

View Number

Member Since 4 Years
Nature of Business Manufacturer
Year of Establishment 1979

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

GM8804CD is a revolutionary dual-hopper packaging controller that is also the first of its kind in the world. This packaging controller is developed with key technologies that promise high performance, reliability and accuracy. It can be easily integrated and is a value-adding solution for applications where dual hoppers are needed on a single machine.
Key Features

CE compliant
28 I/O control (12 inputs and 16 outputs)
Perfect balance between speed and precision with automatic three-speed feeding
Advanced free fall compensation algorithm for extremely precise result every time
Smart calibration without weight
10 recipes can be stored for different weighing capacity
Patent pending two-layer advanced digital filtering algorithm
Setting batching numbers
Two serial communication ports to connect with computer, printer and/or a second display

Product Highlights

CE Approved
Anti vibration
IP65 Protected
Advance digital filtering
High Accuracy

Specification

INDICATOR POWER
Power Supply	90V～260V AC 50Hz(or 60Hz)±2%
Power Consumption	25W
A/D CONVERTER
Type	24-bit Delta-Sigma
Analogue input range	0.2mV to 37mV or 0.2mV to 27mV
Linearity	<0.01%FS
Gain Drifting	10PPM/℃
Minimum Sensitivity	0.5 µ V/d
Conversion Rate	120/s
Display Accuracy	1 / 30,000
DISPLAY & KEYBOARD
Main Display 1	6 digits, 7 segments, VFD
Main Display 2	6 digits, 7 segments, VFD
Extra Sub-Display	1 digit, 7 segments, VFD
Keyboard	16 buttons with beeping feedback
Status Indicators	(8 indicators each channel) SP1, SP2, SP3, COMP, DISC, OVER ,NZ, ZERO. (5 independent LED indicators) RUN, PACK, SUM, FILL, A+B
CALIBRATION & WEIGHING FUNCTIONS
Calibration	By test weight or by electronic calibration
Digital Filter	Multiple FIR filter with 9 selectable levels
Weighing Functions	zero, zero tracking, auto-zero at power
ENVIRONMENTAL
Operating Temperature	-10℃ to 40℃
Storage Temperature	-25℃ to 70℃
Relative Humidity	90% R.H without dew
IP Level	Front panel IP 65
LOAD CELLS
Excitation	12V
Load Cells	Drives 8pcs Load Cells 350Ω
MECHANICAL DATA
Dimensions & Weight	231×257×97 mm (L×W×H) weight approx. 4kgs
Standard Mounting	Panel Mount
Certification	CE
Enclosure	ABS front panel, cast aluminum body
DIGITAL INPUT
Input Number	12
Input Functions	(15 Self-defined functions) Start, Stop, A-Zero, B-Zero, Clear Alarm, Change Recipe, Clip/Loose bag, A-Manual discharge, B-Manual discharge, Manual fine feeding A, Manual fine feeding B ,Print, Key locker, Hi-limit, low-Limit
DIGITAL OUTPUT
Output Number	16
Output Functions	(21 Self-defined functions) Run, A-High-feeding, A-Moderate-feeding, A-Fine-feeding, A-Fixing-value, A-Discharge, B-High-feeding, B-Moderate-feeding, B-Fine-feeding, B-Fixing-value, B-Discharge, Over, Alarm, Clip bag, Punching bag, Discharge, Supply material, Batch complete, Material short, A-Near-Zero, B-Near-Zero
PRINT FUNCTION
Print	RS232 Port
UART RS232/RS485 INTERFACE
BUS	Standard Modbus RTU
CONT	Sending Continuous (General Measure Protocol)
READ	Read and Response mode (General Measure Protocol)
PACKING FUNCTION
Feeding	3 Feeding Speed, Jog-feeding supported
Working mode	A,B channel independent mode, A,B channel combine mode
Packing Mode	With Bin mode, Without Bin mode
Recipe	10 recipes
Accuracy	≤0.5%
Extra	Free fall self-adjust, Punching bag function
