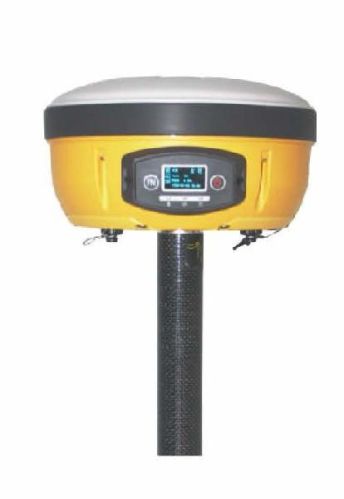

GNSS RTK Receiver

With us, one can stay assured for safe deliveries as we make use of premium material for packaging the lot. Also, we make sure that the material is sourced from the trusted places only. We keep the finished assortment of products in highly developed and spacious space. This helps us in keeping products secure and sorted.
Signal Tracking 372 channels  Advanced multipath mitigation technology Low noise carrier phase measurement Signal Received - GPS/GLONASS/BeiDou - SBAS- WASS, EGNOS, MASAS

Performance Specifications:

• Cold start: <50s
• Warm start: <30s
• Initialization time: typically < lOs
• Initialization reliability: typically > 99.9%
• Signal re-acquisition: <2s

Positioning Specifications:

• Post-Processing Static
• Horizontal: 2.5 mm + 1 ppm
• RMS - Vertical: 5 mm + 1 ppm RMS
• Real Time Kinematic
• Horizontal: 10 mm + 1 ppm
• RMS - Vertical: 20 mm + 1 ppm RMS
• SBAS: Typically < 1 m 3D RMS Communications
• 1 Serial port (7 Pin Lemo),
• 1 Serial port (5 Pin Lemo),
• 2 TNC antenna,

Baud rates up to 115,200 bps Radio Modem: -Integrated GSM/GPRS modem -Integrated Bluetooth V2.0 Class 2
Radio modem

• Internal Rx/Tx: 410-470 MHz -
• External Tx: 5W 35W adjustable
• Communication protocol -Transparent
• TT450S
• South
• TrimMaskI11(19200)
• South 19200 Imposition data outputs
• 5Hz Standard 101-100Hz Optional

Data Format

• Data inputs/outputs - Correction
• data I/O: RTCM 2.X, 3.X, CMR CMR+  Position data
• outputs: - ASCII: NMEA-0183 - Binary update to 50Hz

Physical

• Size (W x H): 184mmx96mm
• Weight: 1.2kg (include battery)
• Button: FN + Power
• Display:128x 62 OLEO Screen

Environmental:

• Operating temperature: -40 0C to +65 °C (-40°F to 149°F)
• Storage temperature: -40 °C to +75°C (-40°F to 167 °F)
• Humidity: 100% condensation
• Waterproof and dust proof: 1P67 protected from temporary immersion to depth of 1 meter, floats
• Shock: survives a 2-meter drop onto concrete

Electrical

• Input Voltage: 9-18 VDC
• Li-ion Battery Capacity: 2 x Rechargeable and Removable 3400 mAh Lithium-ion Battery up to 10 hours typically
• Memory: 256 MB internal with up to 32GB pluggable memory card
• Software E survey field data collection software.
