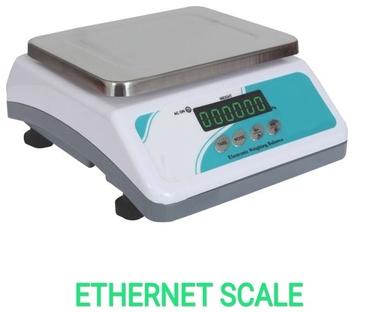

Polished Plastic Ethernet Scale, For Industried Use, Feature : Accurate Result, Durable, Eco Friendly

₹ 3,500 - ₹ 6,000 / Piece

MaterialPlastic, Stainless Steel
PatternPlain
FinishingPolished
Brand NameGOLDFIELD
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader, Buying House
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 7 Years
Nature of Business Manufacturer
GST No. 27AAMFG3158R1ZM

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
MaterialPlastic, Stainless Steel
ApplicationIndustried Use
FeatureAccurate Result, Durable, Eco Friendly, Excellent Finish
PatternPlain
ConditionNew
FinishingPolished
Brand NameGOLDFIELD
Display Resolution2,92,000
Ip RatingIP65
Power Supply230 V AC Mains
Platter TypeStainless Steel Top
Response Time1 Sec
Number of Batteries1
Type of Weighing ScaleTable Top Scale / Platform Scale
Temperature effect on span.017 %FS/10˚ C
Model Name / NumberGMS X
Recommended Excitation Voltage9~12 VDC
DesignRough & Tough
Battery TypeRechargeable Battery
Number of Digits6
Input resistance350 Ω ±5%
Display TypeDigital LED
Display / Digit Type0.56” Seven Segment
Internal Resolution1,60,00,000
Creep0.018 %FS/30 min
Ultimate Overload150 %FS
FeaturesStandard Weighing Scale
Repeatability0.019 %FS
Display Led ColorBright Red / Green
Total Weight4 Kg / 15 Kg
Least Count / AccuracySettable
Taring RangeFull Load Tare
Platter Size (TT Scale)170 x 230 mm
Mode of OperationKg / Gram
Output resistance400 Ω ±5%
Linearity99.9% of the Rated capacity ±1%
Hysteresis0.02 %FS
Allowed Excitation Voltage5~18 VDC
Frequency Supply50Hz, ±10%
CalibrationSemiautomatic
Max. Weighing Capacity KgSettable
Mounting TypeTable / Floor Mounting
Insulation resistance≥5000 MΩ (50 VDC)
Warranty1 Year Against Any Manufacturing Defects
Operating Temp. Range-20˚ C ~ +55˚ C
Operating/Working Temperature0˚ C to 45˚ C
Humidity10% to 95% Relative humanity (Non-condensing)
Safe Overload120 %FS
Temperature effect on zero0.016 %FS/10˚ C
Battery - Backup Time12 Hours
Display Size14 mm
Material of construction (Platform)Mild Steel Powder Coated
Non-linearity0.02 %FS
Number of Switch Keys4
PortableYes
Overload ProtectionYes
ClassII / III
Compensated Temp. Range-10˚ C ~ +40˚ C
Usage / ApplicationPersonal & Commercial
Platform SurfacePlain
Body ColorNA / Siemens Gray
Battery - Stand By TimeUp to 72 Hours
Zero Balance±1.016 %FS
Material of construction (TT Scale)ABS Plastic Molded
Rated Output3.01 mV/V
Shock Load ProtectionYes, through Hardware

Goldfield Weighing Solutions are one of the best Ethernet Scale Manufacturers and promises to deliver smart connectivity to industrial weighing scales. We are one of the prominent manufacturers who are offering the choice of Wi-fi / Ethernet-enabled weighing scales and additional systems to its customer who wish the weighing scales to be rightly connected to the network or internet. It is the outcome of the continuous efforts to give the advanced and the best of the present and future customer base. It even results in the continuous efforts and hard work of our Research and Development team.We understand that the most important reason behind our success in the market is customer support. Installation of the product, warranties, and maintenance contracts are professionally handled by software. If you have any questions or queries related to the Ethernet Scale, our team is ready to assist you 24*7. Place your order now online!
