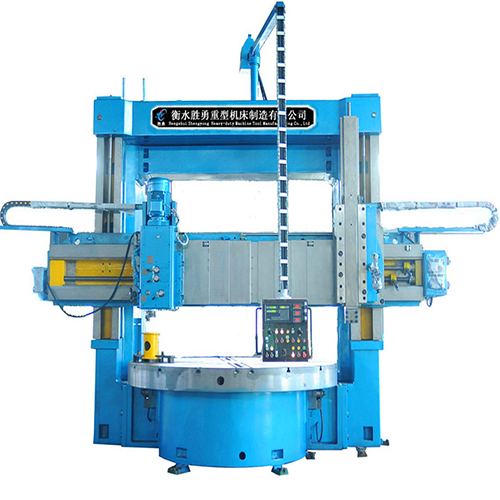

Good CNC Vtl Lathe Machines

The Cnc vtl machines for sale can machine rotary parts with diameter below 5000mm,maximum height of the workpiece up to 4150mm, maximum weight of the workpiece up to 80 ton . Vtl lathes for sale can process the cylinder surface, cone surface and end face in the materials of hard alloy tool and ferrous metals and some non-metallic materials.
According to customer needs, cnc vtl machines for sale can be used constant temperature cooling device. Vtl vs lathe can be equipped with an independent hydraulic station system to ensure the machining accuracy.
Technical specification of CNC vtl lathe machines for sale CK5250
1 Max.turning diameter 5000 mm
2 Maximum Height of workpiece 200025003000315036504150 mm
3 Maximum Weight of workpiece 325080 t
4 Table diameter 4200 4500 mm
5 Speed range of table Stepless
6 Maximum torque 100 KNmin
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post -20-2630 mm
9 Rotation angle of tool post -15-+30° degree
10 Power of main motor 7598 kw
11 Overall dimensions(L×W×H) 8610×6000×5600 mm
8610×6000×6100 mm
8610×6000×6600 mm
10930×6000×6800 mm
10930×6000×7300 mm
10930×6000×7800 mm
Vtl lathes for sale parts photo
