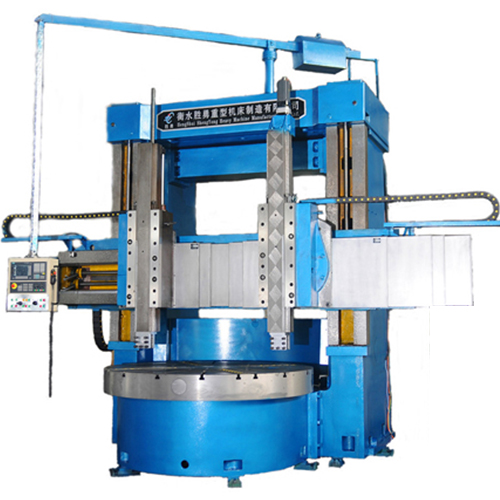

Good Condition Used Vertical Turning Lathe Machines

Vertical turning lathe machine is with better performance in loading and clamping work pieces and is more suitable for disc parts with high machining precision and complicate shape compares with the CNC horizontal lathe. Through the deep study on processing technology of typical parts by users, the lathe can offer optimized technology to meet user`s requirement accordingly.
Vertical Turning lathe Machine Feature
1 Multifunctional design best practices, and minimum investment cost.
2 Outstanding high rigid structure design, heavy cutting mechanical performance.
3 Worktable has a high rotational accuracy, large load capacity and thermal deformation characteristics.
Vertical turning lathe machines VTL machine model:
C5112C5116C5118C5120C5123C5125C5126
C5225C5232C5240C5250C5263 C5235
Technical specification of Good condition Vertical turning lathe machines C5225
1 Maximum turning diameter 2500mm
2 Maximum height of workpiece 16002000220025003000 mm
3 Maximum weight of workpiece 1020 t
4 Table diameter 2250 mm
5 Speed change of table 2~63 rmin
6 Maximum torque of table 63 KNmin
7 Vertical travel of tool post 10001250 mm
8 Horizontal travel of tool post 1400 mm
9 Rotation range of tool post ±30° Degree
10 Power of main motor 55 kw
11 Machine weight (About) 32~38 t
