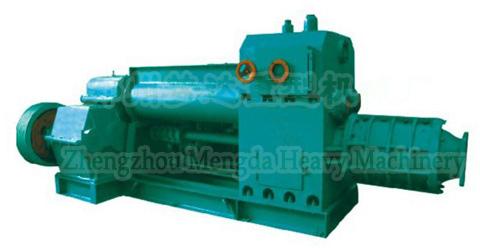

Good Quality Clay Brick Making Machine

We are offering good quality clay brick making machine.
Product description
1.compatible automated production line can realize unmanned operation.
2. The vertical strip cutting machine can overcome the mud dump, increase production, save 7-15% energy, reduces one or two staffs and decrease working wear.
3. With intellective anti-deflective control, the machine can save 70-100% of fuel.
product feature
this dual-shaft mixer is composed of shell, screw shaft assembly, drive unit, piping assembly, cover and chain guard, etc.
1.as the main support of dual-stage mixer, the shell body is welded with sheet materials and profile steel and assembled with other parts.
2. Screw shaft assembly is key component of this mixer, which is made up of left-and-right rotating screw shaft, bearing block, bearing holder, bearing cap, gear, chain wheel, oil cup and other parts.
3. Piping assembly for adding water is formed by take-over, tie-in and muzzle. With simple structure, the stainless steel muzzle is easy to change and antiseptic. Through handle the manual control valve on the pipe can adjust moisture content of wet ash.
specifications
1) stable performance
2) energy-saving
3) competitive price
4) best service
technical parameter
specifications model jzk 30-2.0
production (pcsh) 4000 - 6000
motive power 45 - 55
dimension 3450x1220x1320
specifications model jzk 35-2.0
production (pcsh) 6000 - 8000
motive power 55 - 75
dimension 3750x1340x1550
specifications model jzk 40-2.0
production (pcsh) 8000 � 10000
motive power 90 - 110
dimension 4750x1500x1650
specifications model jzk 45-3.0
production (pcsh) 10000 - 13000
motive power 110 - 132
dimension 4960x1680x1750
