GPS Car Tracker

FM5300 is advanced terminal with GLONASS/GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.

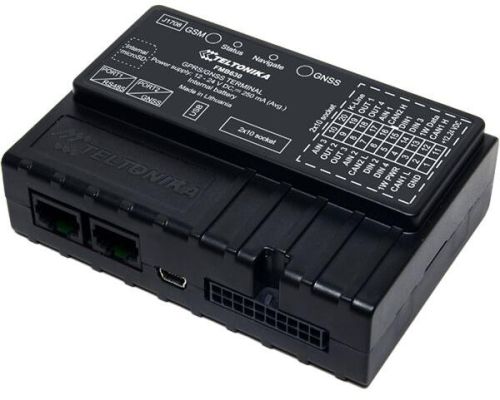

FMB630 – RS232, CAN bus, extended IO’s

GLONASS/GPS/GALILEO/GSM Terminal

FMB630 is advanced terminal with GLONASS/GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.

In case of losing connection FMB630 can store more than 47000 records, and once the connection is established the device will send stored data via GPRS. So you won’t lose your data (coordinates, sensors data and ect.).

Features:

• GPS/GLONASS coordinates and I/O data acquisition
• Real Time tracking
• Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• 47000 records saving into flash memory
• Two RJ45 (RS232) ports
• RJ45 ports can be used to connect two LLS digital fuel sensor without a concentrator
• RFID reader can be connected to use it for authentification purposes
• Garmin navigation can be connected to send direct messages and new destinations to driver
• Smart algorithm of GPRS connections (GPRS traffic saving)
• Operating in roaming networks (preferred GSM providers list)
• Events on I/O detection and sending via GPRS or SMS.
• Scheduled 24 coordinates SMS sending
• One configuration file enables convenient configuration
• Data reading from CAN Bus (FMS standard)
• CAN Bus Autoscan funcionality which enables to automatically configure CAN bus data reading and therefore simplifies configuration process
• Multi geofence zones (rectangular or circle)
• Autogeofencing funcionality which automatically draws geozones of certain radius, decreasing risk of car theft
• Deep Sleep mode (saving vehicle‘s accumulator)
• Firmware update and configuration using USB interface
• OTA (firmware updating via GPRS)
• Built-in 550 mA battery
• Accelerometer
• Small and easy to mount case
• Roaming dependant operation (GPRS traffic saving in roaming zones)
• Acceleration detection (harsh breaking and accelerate measuring)
• Operation mode presets
• Advanced overspeeding detection
• Driver behavior monitoring (acceleration/breaking/cornering notification to minimize the vehicle exploitation costs)
• Driver identification (1-Wire® iButton ID key)
• Immobilizer scenario which enables to start engine only after reading the 1-Wire® iButton ID
• Authorized driving which enables to start engine only after reading the 1-Wire® iButton ID from authorized ID list. List can contain 50 different ID’s
