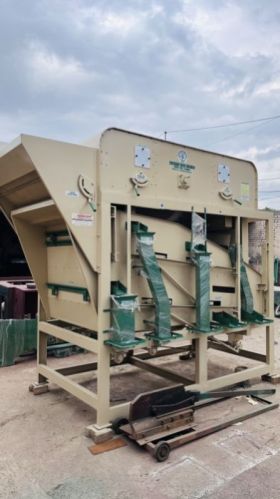

Semi Automatic MILD STILL Grain Seed Grader Machine

Roshan Seed Grader

Model :- RSG-3 Screen (UNNAT )

Capacity :- 2-3 TPH  at  12 % moisture  content & 20 % impurities bassed on PADDY

Over all   dimension :-350x180x332 cms (L*B*H)

 No. of  Airaspiritaion :-  2(Two)

Electric motter:-5hp 3 phase 440vt ac supply.

No. of Screen :- 3 (three)

 Size of screen :-  Top  screen 136x112cms

Middle  screen 136x182cms

Bottom screen 136x182 cms

 SCREEN MATRIAL  :- TATA PIPE FRAME

SCREEN :- CNC PUNCHING MACHINE

 Screen cleaning :- top  screen  by beaters, middle &bottom screen  by travling BY BRUSH

No. of  blower:-  1 (one )

Blower  capacity :- 4050 cfm at 45 mm wgsp

Blower speed :- 2800 rpm

This  machineis suitable for the cleaning  &  grading  of various creals seeds, vagitable  seeds , oil seeds foresty seeds  fodder seeds  bajra  , dust & also under size

Over size matrial  from  the raw seed / grain like wheat , gram , urad ,moong , paddy  chick peas , peas, maize etc. complete with  electric  motter stater switch &standerd feature.

The cradle  oscilation  speed  and air control is variable  the screen shall be inter changeable  . the unit  is highly  finished  painted with red oxide primer  followed by 3  coat of ESPAA finish paint.
