Granite Cutting Machine

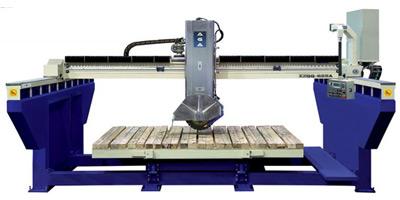

We are offering granite cutting machine. Automatic granite bridge saw for cutting kitchen slab, countertop, benchtop, vanity, etc.
This bridge saw is able to cut 3200mm length and 2000mm width. (126”×78”).
the blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge.
The table turns 0 – 360 degree automatically and also tilts 0 - 85 degree hydraulic for easy load of the material.
The laser guide and sensors provides high accuracy for the machining tolerance.
this granite bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation.
the machine structure is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.
also all the functions are operated on the control panel that make it very user friendly.
granite bridge saw specification
blade size
400-625mm 16”-25”
cut length
3200mm 126”
cut width
2000mm 78”
cut thick
170mm 7”
blade tilt
0 - 45°
table rotate
0 - 360°
table tilt
0 - 85°
spindle motor
15kw 20hp
size (l×w×h)
6000×3000×2600mm
weight
7200 kg
