Contact Suppliermaster square

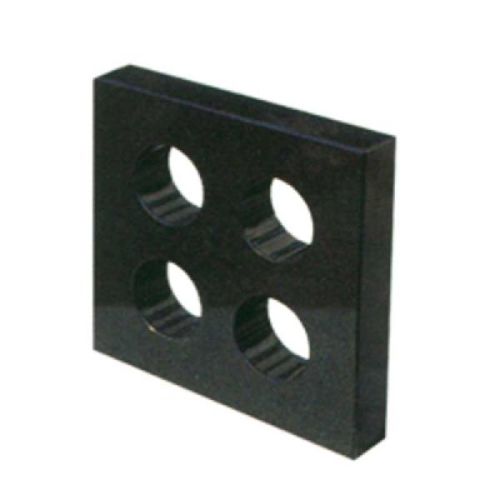

granite master square
cast iron measuring tools
four edges flat, square and parallel to each other with lightening holes
all granite products available in custom sizes and thicknesses, with threaded inserts, without lightening holes
pecification (mm) | verticality measuring face basis | measuring surface flatness or straightness | base surface plane or straightness | ||||
precision grade | |||||||
00 | 0 | 00 | 0 | 00 | 0 | ||
100*63 | 2 | 4 | 1 | 1 | 1 | 1 | |
160*100 | 2 | 4 | 1 | 2 | 1 | 1 | |
250*160 | 2.5 | 5 | 1 | 2 | 1 | 2 | |
400*250 | 3.5 | 7 | 1 | 2.5 | 1 | 2 | |
630*400 | 4.5 | 9 | 1.5 | 3 | 1 | 2.5 | |
800*500 | 5 | 10 | 2 | 4 | 1.2 | 3 | |
1000*630 | 6 | 12 | 2.5 | 5 | 1.5 | 3 | |
