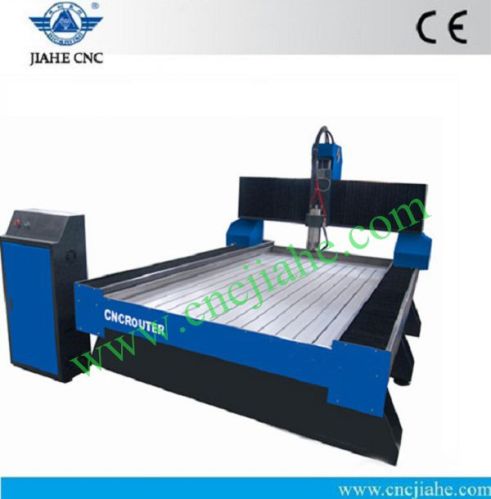

Granite Stone Cutting Machine For Tombstone, Brand Name : JK

We are offering chinese practical granite stone cutting and polishing machine for tombstone.
Advantages:
1.t-slot heavy duty machine body, larger loading capacity.
2.x y z use hiwin linear square guide rail, it is more stable and has longer life than the normal round one.
3.z tansmission use high precision german ball screw, avoid the spindle suddenly up and down.
4.we use stepper motor and driver, it is more economical and practical.
5.adopt chinese water cooling spindle,it is suitable for long time and high temperature working.
6.powerful ncstudio control system, easy to learn and operate,high-precision and high-speed, multi-task parallel interconnection capabilities.
Parameters and specifications:
model: jk-1212
machine body: heavy duty with water tank
table: aluminum table
x y z working size: 1200*1200*200mm
x y z guide rail: hiwin linear square guide rail
x y transmission :rack and pinion
z transmission: ball screw
spindle: 3-5.5kw water cooling sindle
spindle :speed 24000rpm
inverter: 3.7-6kw sunfar inverter
voltage :ac 220v 50hz380v 50hz
collet: er20er25
motor :stepper motor
driver :stepper driver
transformer :yes
lubrication :yes
cover: x y z cover
max. Speed: 20mmin
max. Working speed: 15mmin
repeat reposition accuracy: 0.025mm
software : artcamucancamtype3
contol system : ncstudio
command: g-code
