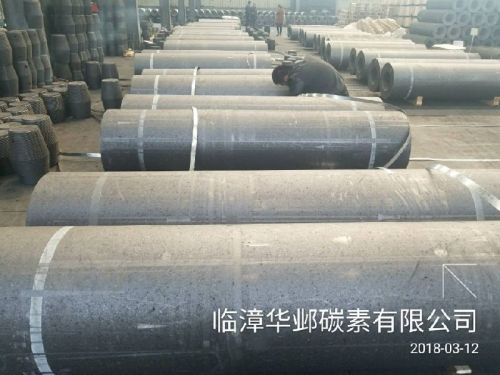

Contact SupplierWe supply and export UHP 700x2700mm graphite electrodes nipples preset
Items | RP | HP | UHP | ||||
 | Φ200-φ300 | Φ350-φ600 | Φ200-φ400 | Φ450-φ600 | Φ250-φ400 | Φ450-φ600 | |
Resistivity (uΩm)max | Electrode | 8.5 | 6.5 | 5.5 | |||
 | Nipple | 6.5 | 5.5 | 4.5 | |||
Bulk Density (g/cm³)min | Electrode | 1.53 | 1.52 | 1.62 | 1.60 | 1.67 | 1.66 |
 | Nipple | 1.69 | 1.73 | 1.75 | |||
Rupture Strength (Gpa)min | Electrode | 8.5 | 7.0 | 10.5 | 9.8 | 11 | |
 | Nipple | 15.0 | 16.0 | 20.0 | |||
Young’s Modulus (Gpa)max | Electrode | 9.3 | 12.0 | 14.0 | |||
 | Nipple | 14.0 | 16.0 | 18.0 | |||
Ash (%)max | Electrode | 0.5 | 0.3 | 0.3 | |||
 | Nipple | 0.5 | 0.3 | 0.3 | |||
CTE (100-600℃)max | Electrode | 2.9 | 2.4 | 1.5 | |||
 | Nipple | 2.8 | 2.2 | 1.4 | |||
