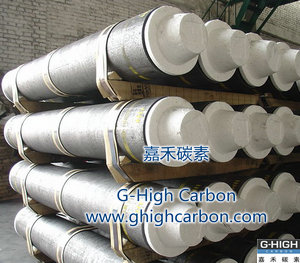

Graphite Electrode

We are offering graphite electrode
g-high graphite electrodes are made from petroleum coke and needle coke, using coal tar pitch as agglutinant, produced through the process of calcining, mixing, kneading, compressing, roasting, graphitization and machining, etc.
G-high graphite electrodes have the properties of superior electric conductivity and chemical stability, high mechanical strength, less impurity, seismic performance in high temperature. G-high graphite electrodes are mainly used for steel-making in electric furnaces, mineral hot furnaces and electric resistance furnaces.
Graphite electrodes conduct electric current into the furnace. Electric current produces arc in the smelting district, when the temperature increases to about 2000°c, smelting begins. Our series of graphite electrodes are applicable to the common furnaces and high power furnaces with high voltage and short arc. G-high graphite electrodes are classified into three classes.
np graphite electrodes: mainly used in common power electric ovens for smelting steel, smelting silicon and smelting yellow phosphorus;
hp graphite electrodes: mainly used in high power electric ovens for smelting steel;
uhp graphite electrodes: mainly used in ultra high power electric ovens for smelting steel.
specifications:
resistivity≯ unit：μωm
electrode
np grade dia100-500mm 8.5
hp grade dia 300-500mm 6.5
uhp grade dia 350-500mm 6.5
nipple
np grade dia100-500mm 8.5
hp grade dia 300-500mm 6.0
uhp grade dia 350-500mm 5.5
bending strength≮ unit：mpa
electrode
np grade dia100-500mm 9.8
hp grade dia 300-500mm 10.0
uhp grade dia 350-500mm 10.5
nipple
np grade dia100-500mm 13.0
hp grade dia 300-500mm 14.0
uhp grade dia 350-500mm 16.0
elastic modulus≯ unit：gpa
electrode
np grade dia100-500mm 9.3
hp grade dia 300-500mm 12.0
uhp grade dia 350-500mm 14.
Nipple
np grade dia100-500mm 14.0
hp grade dia 300-500mm 16.0
uhp grade dia 350-500mm 18.0
bulk density≮ unit: g/cm3
electrode
np grade dia100-500mm 1.53
hp grade dia 300-500mm 1.63
uhp grade dia 350-500mm 1.65
nipple
np grade dia100-500mm 1.69
hp grade dia 300-500mm 1.72
uhp grade dia 350-500mm 1.72
cte≯ unit: 100-600℃
electrode
np grade dia100-500mm 2.9
hp grade dia 300-500mm 2.2
uhp grade dia 350-500mm 1.5
nipple
np grade dia100-500mm 2.8
hp grade dia 300-500mm 2.0
uhp grade dia 350-500mm 1.4
ash≯ unit: %
electrode
np grade dia100-500mm 0.5
hp grade dia 300-500mm 0.3
uhp grade dia 350-500mm 0.3
nipple
np grade dia100-500mm 0.5
hp grade dia 300-500mm 0.3
uhp grade dia 350-500mm 0.3
