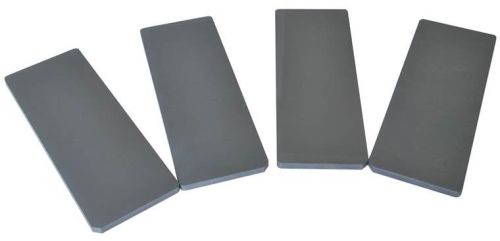

Graphite Plates

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We offer premium quality Graphite Plates to the clients. Widely used in chemical, electric and electronic industry, these Graphite Plates are suitable for producing the heat exchanger of graphite electrodes and linings in some industrial furnaces (like graphitization furnace), cathodes in aluminum electrolytic cells, etc. The Graphite Plates offered by us are appreciated by the clients for features like low oxidation, corrosion resistance and extreme temperature bearing strength. Clients can avail the Graphite Plates from us in the required specifications at best prices.

View More Details

Send Enquiry

Specifications

Technical data	Unit	Grade1	Grade2	Grade3
Ash Max.	%	0.15	0.13	0.1
Specific Electrical Resistance Max.	© m	15	12	10
Bulk Density Min.	g/cm3	1.66	1.72	1.8
Compression Strength Min.	M p a	35	45	60
Flexural Strength Min.	M p a	20	25	30

Nominal Sizes

DIA60x100	DIA330x240	320X270X120	340x250x120
DIA110x240	DIA 117 X (120-200)	320X220X100	380x280x150(200)
DIA135x135	DIA 150 X (150-160)	320X220X120	430x255x125(150)
DIA125x240	DIA 160 X 200	320X270X100	430x125x125
DIA150x120	DIA 340 X 300	330x260x120(150)	450x220x150
DIA160x240	DIA 410 X300-370	300x200x120	550x260x150
DIA190x120	DIA 610 X260-320	420x135x120	650x210x150
DIA210x240	DIA 117 X (120-200)	420x140x140	490x300x180
DIA260x300	DIA 150 X (150-160)	280x135x110	550x370x150(200)
DIA300x260	200x200x65(55,80)	310x310x140	500x400x190
