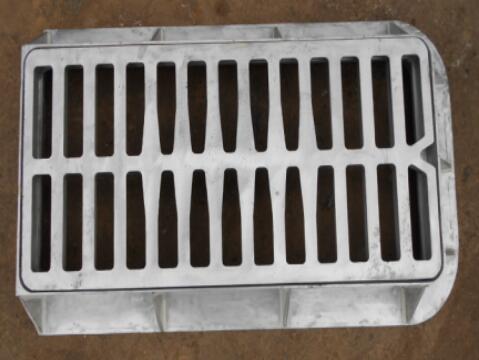

Standard:Â EN124/GGG500-7Â
Material:Â Ductile Iron
Coating:Â Bitumen coating
Load Capacity：C250/D400
Item | Description | Frame size   (mm) | clear opening (mm) | Height   (mm) | Unit weight (kg/PC) |
1 | C250 gully grating | 300*300 | 170*170 | 45 | 9 |
2 | C250 gully grating | 400*400 | 270*270 | 45 | 15 |
3 | C250 gully grating | 500*500 | 370*370 | 50 | 23 |
4 | C250 gully grating | 550*550 | 420*420 | 50 | 27 |
5 | C250 gully grating | 600*600 | 470*470 | 55 | 31 |
6 | C250 gully grating | 700*700 | 570*570 | 60 | 48 |
7 | D400 gully grating | 500*500 | 370*370 | 80 | 32 |
8 | D400 gully grating | 550*550 | 420*420 | 80 | 38 |
9 | D400 gully grating | 600*600 | 500*500 | 80 | 43 |
10 | D400 gully grating | 700*700 | 570*570 | 80 | 58 |
11 | D400 gully grating | 700*700 | 600*600 | 100 | 95Â |
Most of the standard sizes are available.
