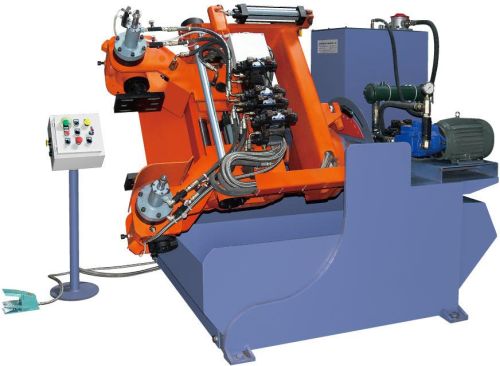

Gravity Die Casting Machine - (hy-ab500)

Hy-ab500 gravity die casting machinery
main specifications and technical parameters
maximum outlined diameter of mold ǿ500mm
maximum weight of mold 150kg
maximum distance of mold base plate 510mm
maximum clamping stroke 270mm
angle range of measured-cast 0°-90°
angle range of mold immersion 0°-110°
angle range of mold immersion 0°-90°
oil pressure 50-70bar
power capacity 3.75+0.75+0.75w
three phase power 380v/50hz(per customers requirement)
oil tank capacity 220l
volume of mold immersion tank 375l+375l
net weight of the equipment 2000kg
maximum dimension of the equipment 1650*2300*1720mm .
