Gravity Die Casting Machine

We are offering gravity die casting machine,
over 20 years factory,own the domestic first-class team and professional design team,integrating production ,sales and after-sales ,own exporting license,high quility products,competitive price,oem,timely delivery.

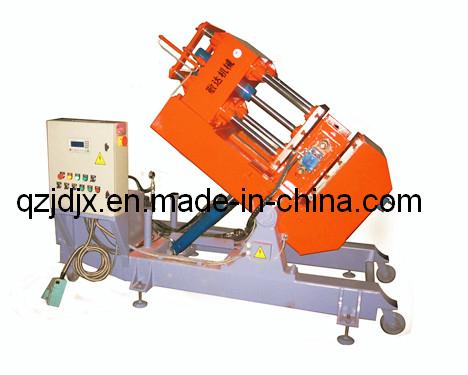

Aluminum gravity die casting machine jd550
jd-550 tilt gravity die casting machine for aluminium.
It's a machine which is used in casting not only aluminum but also zinc and some other metals. For brass and copper casting, please refer to our products jd-ab500 and jd-ab400.
technical parameters:
1. Controlled by a plc control unit. (mitsubishi).
2. Running: hydraulic transmission&water cooling system(a hydraulic master cylinder system can control three casting machines)..
3. Casting function: tilting moving casting, fixed tilting casting, fixed horizontal casting
4. Casting speed & angle are adjustable, size angle: 0-85°
5. The time of colling mold is adjustable
6. The size of die holder of fixed mold: 750mm*350mm*70mm
7. Max. Weight of mould: 250kgs
8. Having safety footboard(the set to protect the operator)
9. Power: 7.5kw.
10. Max engaging distance: 400mm
11. The space between the fixing board of the mold: 620mm
12. The pressure of engaging mold: 4200kg
13. Fuel tank capacity: 450l
14. Working oil pressure: 50-60kg/cm²
15. Solid time are adjustable.
16. The time of casting can be shown.
17. The level of pouring package can be controlled
18. If the die temperature exceeds the limits, the mold can not be engaged
19. The net weight of machine: 3500kg
20. Machine dimensions: 2600mm* 1500mm* 1700mm
our products jd-650-75a and jd-750-75a are also used in casting not only aluminum but also zinc and some other metals.
