Light White Gravity Separator, for Indsutrial, Certification : CE Certified, ISO 9001:2008

Listing ID #399577

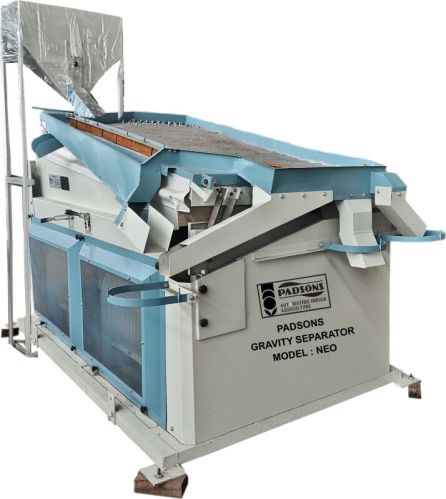

Padsons Gravity Separator is designed to separate particles of same size but of different specific gravity (like rain damaged insect attacked or low grade seeds). The material is fed continuously on the surface of oscillating deck attached with the Gravity Separator. The pressurized air permeates though porous deck surface made up of wire-mesh and creates fluidized bed, this cause the seed particles to orient themselves as per their specific weight. These Gravity Separators are used in Seed Industry and Food Processing industry. The Gravity Separator is used for oil extraction, pulses mill, bakery, rice mill, flour mill, breweries, etc.

• The new generation of PADSONS Gravity Tables have a state of the art aerodynamics and counterbalancing.

  Using the most modern simulation tools available the design of the  table between the fans and the table top was optimized to produce a  laminar air flow whose pressure and speed is consistent at all points  on the table. This not only leads to optimized sorting results but also to higher performance levels.

  PADSONS Gravity Tables sort according to specific weight and are used wherever products with varying weights need to be sorted.

  Key Properties:

  Variable vibration frequency

  Precise adjustment of the table angle on both planes

  Table top is quick and easy to change

  Minimum vibration due to the new counterbalancing system

  Uniform air pressure and distribution due to the optimized aerodynamics

  Applications:

  Seed processing of grain, corn, fine seeds, pulses, oil and grass seeds, cottonseed

  Separation of impurities from lentils, peas, beans, coffee, peanuts, hazelnuts, and almonds in the food industry

  Separation of metals, plastic, rubber, wood, minerals



  Options:

  Vibrating discharge conveyor for gentle transport of grains

  2 decks with varying mesh size for different products

  3 sizes of de-dusting hoods (one-third, one-half or complete coverage)

  Buffer bin

  Operating platform



Capacity : 1 TPH TO 6TPH
