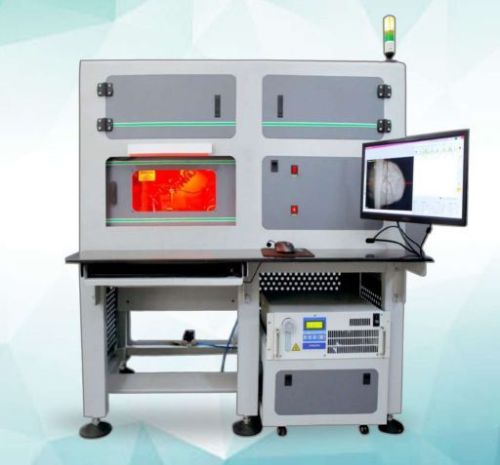

Green Fiber Diode Laser System

Dimension1270 mm*620 mm*1380 mm
Electrical RequirmentAc 208-230v, 60 Hz, 5 Amps.
ChillerRequirement of External Chiller.
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Special Features: Low Weightloss. Multitop Cutting in Only One Set-up. Next to "Nil” Breakage Ratio. Smooth Cutting Surface. Easy and Smart Program. High Production. Auto Image Capture. Advance Software Feature. 70% less Electricity bill compare to any other Green Machine.

View More Details

Send Enquiry

Laser

Wavelength	532nm
Output Power @ 7.5 KHz, Watts	20 W
Transverse Mode	TEMoo
Beam Diameter, mm	0.4
Beam Quality (M2)	<1.2
Pulse repetition frequency (PRF), KHz :	1-20
Pulse width @ 7-10 KHz, ns	70
Pulse Stability @ 10 KHz (RMS)	3
Polarization	Liner (Vertical)
Output Stability (% Over 8 hrs)	1
Working Temp ©	20

CNC System

Axis Travel	135 mm* 135 mm*75 mm
Resolution	1 Micron or better
Accuracy	2 Micron / 25 mm
Repeatability	2 Micron / 25 mm bi Directional
Drive	Servo Drive with Encoder.
