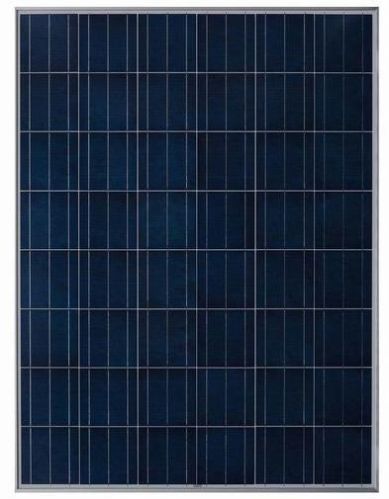

Contact SupplierWe are offering green solar energy system.
48 cells poly:
power output: pmax w 210 205 200 195 190
module efficiency ηm % 16.2 15.8 15.4 15.0 14.7
voltage at pmax: vmpp v 24.8 24.5 24.2 24.0 23.7
current at pmax: impp a 8.47 8.36 8.25 8.14 8.03
oppen-circuit voltage: voc v 31.2 30.9 30.7 30.4 30.1
max. Static load, front (e.g., snow): 5400pa
max. Static load, back (e.g., wind): 2400pa
dimensions(lwh): 1310mm990mm40mm
weight: 14.7kg
front cover (material thickness): low-iron tempered glass 3.2mm
cell (quantity material dimensions): 48 polycrystalline silicon 156mm x 156mm
frame: anodized aluminum alloy
