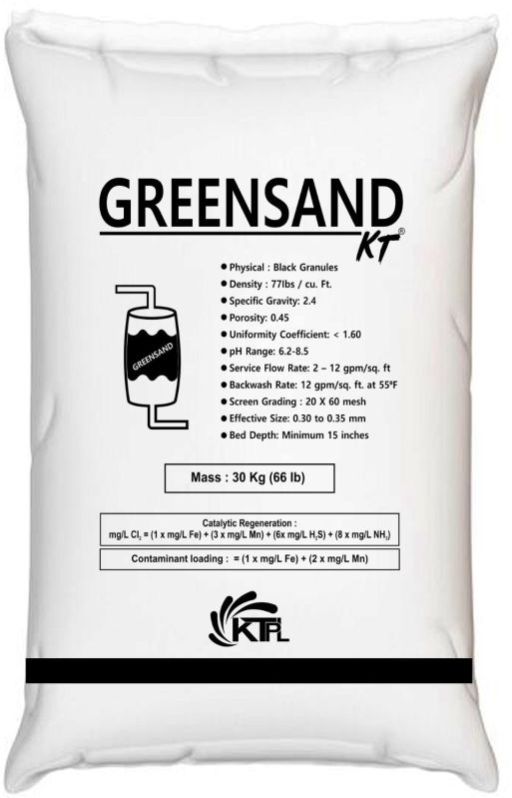

Greensand-kt, Color : Black

Greensand KT is effective at higher operating temperatures and higher differential pressures than ordinary manganese greensand. Greensand KT is a black filter media used for removing soluble iron, manganese, hydrogen sulfide, arsenic, and radium from water supplies. The manganese dioxide coated surface of Greensand KT acts as a catalyst in the oxidation reduction reaction of iron and manganese.

Systems may be designed using either vertical or horizontal pressure filters, as well as open gravity filters.

Greensand KT is a proven technology for iron, manganese, arsenic, radium, and hydrogen sulfide removal. Unlike in-situ treated media, there is no need for extensive preconditioning of filter media or lengthy startup periods, during which required water quality may not be met.

PHYSICAL PROPERTIES

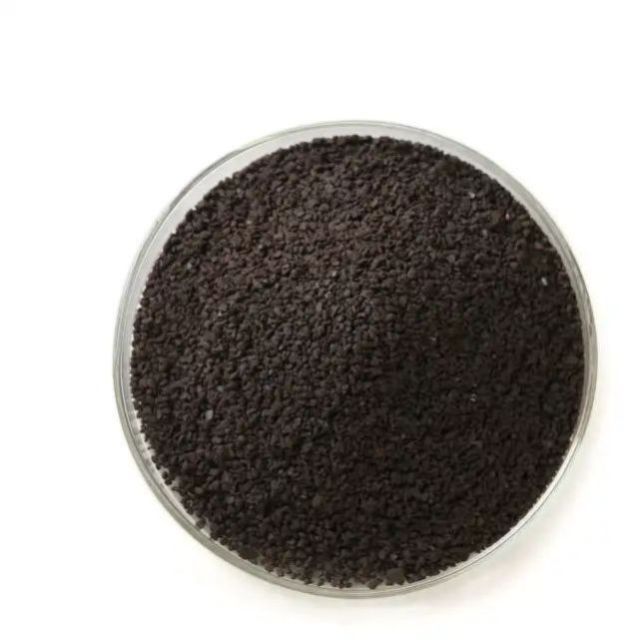

• Physical Form               : Black Granules
• Apparent Density         : 77 lb/cu.ft
• Specific Gravity.           : 2.1 approx
• Porosity                         : 0.45 approx
• Screen Grading            : 16 x 36 mesh
• Effective Size.              : 0.30 to 0.35 mm
• Uniformity Coefficient : < 1.80
• pH Range                      : 6.2 to 8.5
• Backwash Rate             : 12 gpm/sq.ft. @ 55ºF
• Service Flow Rate         : 2-12 gpm/sq.ft
• Minimum Bed Depth.   : 30 inches

OPERATING CONDITIONS

• Bed Type                :  Greensand KT 30 inches
• Backwash              : Sufficient rate using treated water to produce 45% bed expansion
• Air/Water Scour.    : Optional using 0.7 to 2.5 cfm/sq.ft. with a simultaneous treated water backwash at 5.0 to 5.5 gpm/sq.ft.
• Raw Water Rinse.  : At normal service flow rate for 5 to 10 minutes or until effluent is acceptable

FEATURES

• It can take max iron concentrations up to 7 ppm
• It can reduce iron, Manganese and Hydrogen Sulfide up to
