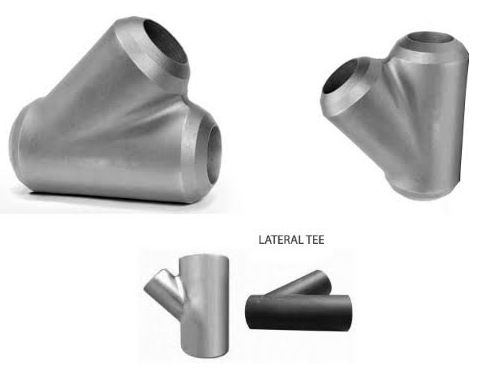

Metal Buttweld Lateral Pipe Tee, Color : Grey

Sandco Metal Industries are renowned manufacturer, supplier and exporter of Butt Weld Lateral Tee from past 25 years which includes stainless steel tee, carbon steel tee, alloy steel tee etc. Butt welding is a technique which is mainly used to connect parts which don’t overlap and are nearly parallel. Butt welding is economical and very reliable way for joining which is done by gradually heating up the two weld ends with a weld plate under a specific pressure.
ASME B16.9 Butt weld Lateral Tee are available in a variety of materials, sizes and finishes, they may also be used to transport two-fluid mixtures .Pipe tee is used to divide fluid flow, they connect pipes of different diameters or change the direction of a pipe run, or both. Tees may be equal or unequal in size of their three connections. Pipe Tees Industrial applications include:

• Chemical processing
• Petroleum
• Pulp/Paper
• Refining
• Textile
• Waste treatment
• Marine
• Utilities/power generation
• Industrial equipment

Material of Construction in pipe tees-- Stainless steel, Carbon steel, Cast iron, Nickel, Aluminium, Copper, Brass, Bronze, etc.
We provide ANSI/ASME B16.9 Lateral Tee in various available grades and dimensions at affordable cost with no quality compromise. Our Butt weld fittings are available in all major grades of stainless steel (304/304L fittings, 316/316L/316Ti fittings, Super Duplex fittings, Duplex fittings, 904L fittings and other steels), carbon steel and alloy steel and are manufactured in accordance to ASME, ISO, EN and DIN standards. We also provide our customers with personalized Butt Weld Fittings like cutting, polishing and threaded products & electro polished stainless steel fittings with complete excellence.
Our motto is customer satisfaction by providing them durable, long lasting and premium quality ANSI/ASME B16.9 Lateral Tee under ISO-9001:2008 certifications.
ANSI/ASME B16.9 Lateral Tee Specification

• Schedule: Sch 5 TO Sch XXS.
• Sizes: 1/2” TO 36” (SEAMLESS UPTO 24”) & (WELDED 8” TO 36” )
• Type: Butt Weld (BW)
• Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and costumised.

Standards: ANSI – B 16.9

• ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
• ASME B16.9 – ‘ Wrought Buttwelding Fittings”
• ASME B16.25 – ‘Buttwelding Ends’
• ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’
• API 590-605
• MSS SP-43 – ‘Fabricated & Wrought Butt-Welding Fittings for Corrosion Resistant, Low Pressure Applications’

Materials : Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Dimension : ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
Value Added Services : Hot Rolling, Cold Rolling, Galvanizing, Heat Treatment, Tempering, Electro Polishing, Threading, Sand Blasting, Soldering.
ANSI/ASME B16.9 Lateral Tee warehouse
Sandco Metal Industries is a leading manufacturer of ANSI/ASME B16.9 Lateral Tee,  we have our own warehouse situated at kalamboli,navi Mumbai, India. We are thankful to our working staff that their day and night efforts made it possible to produce adequate stock of premium quality ANSI/ASME B16.9 Lateral Tee that qualify world class norms and standards of steel and metal industry.
ANSI/ASME B16.9 Lateral Tee LABELLING AND WRAPPING
Labelling & Wrapping is a technology of protecting and differentiating produced goods for distribution, storage , sales and use. Our butt weld fitting product named as ANSI/ASME B16.9 Lateral Tee is finely marked by using different id no. and colour shades so that it is easy to differentiate between steel grades. We deliver our customers order by using certain wrapping methods like overseas packing (ISPM15), wooden crate etc.
ANSI/ASME B16.9 Lateral Tee LOGISTIC DETAILS
We are known in steel and metal Industry field for providing our customers their order within 3-4 working days. If ANSI/ASME B16.9 Lateral Tee is not in stock then Sandco Industries will notify this situation to our valuable clients and dispatch that order within 2-4 weeks.
We also provide a prior detail of product delivery which includes delivery time, date, delivery man name etc, if any change occurs then it’s our duty to inform our customers to avoid any last minute hassle.
