Hard Coating Machine For Ophthalmic Lenses, Certification : ISO-9001: 2008 Certified

Hard coating of Ophthalmic lenses made in CR is to be done with an high quality of cleaning and conditioning of lenses. Thereafter dipping and removing the lenses from the varnish with an accurate control on the removal speed. Entire process of many steps shall be controlled with precise tuning and unique logic.

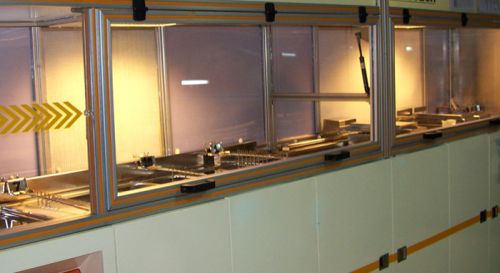

                INNOTECH make HC-800 is an excellent hard coating system designed after thorough and detailed study of requirement of a good quality hard coat on ophthalmic lens. Some of the special features incorporated are unique in nature and make this system with high rate of  output.

Some of the main salient features:

• System with 17 well designed unique stages and automatic shifting.
• Aesthetically designed with technical perfection.
• Tailor made for foundation coat with primer lacquer combination.
• Provision for speed profiling with best uniformity of coat.
• Cleaning with water based solvents – no disposing threats.
• Best quality of adhesion of coating by foundation method.
• Low operational cost.
• Double transporters for cleaning and coating each.
• State of the art automation with provision of tuning every operation.
• Class 100 working chamber with positive pressure.
• Touch screen with excellent graphic display of system working.
• Color monitor with error message for any intervention if required.
• Password protection – configure, save, protect and recall the process.
• 8 Lenses per batch and 10 to 12 batches per hour ( typically ).
• World class quality finish for tintable and non tintable lenses.
• Internally mounted water purification system.
• Multiple program memory.
• Working plane and all tanks made in SS316.
• Fume extraction.
• Algae free PDFE pipeline with snap fit technology.
