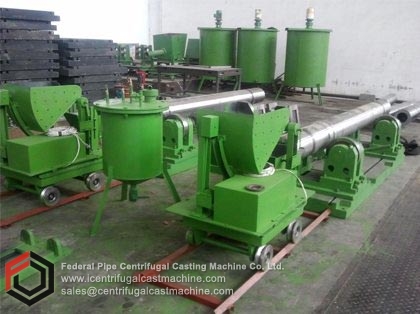

We manufacture Grey Iron Pipe Centrifugal Casting Machine by using high-quality raw material according to the set industry norms. It is available in various specifications as per the needs of customers. Grey Iron Pipe Centrifugal Casting Machine is used in the production of grey iron pipes. It has a sturdy construction, high strength, corrosion resistant nature, and a long functional life. Further, our Grey Iron Pipe Centrifugal Casting Machine is easy to install and operate.
Key Features :
| Items | Model | Pipe Length | Material Quality | Capacity |
|---|---|---|---|---|
3-meter CCM | FGL1-00-I | -- | -- | 15 KWH |
3-meter CCM Mould | Φ3 inches | 1500-10000mm | 30COMO | |
3-meter CCM Mould | Φ4 inches | 1500-10000mm | 30COMO | |
3-meter CCM Mould | Φ5 inches | 1500-10000mm | 30COMO | |
3-meter CCM Mould | Φ6 inches | 1500-10000mm | 30COMO | |
3-meter CCM Mould | Φ8 inches | 1500-10000mm | 30COMO | |
3-meter CCM | FGL1-00-I-1 | 15 kwh | ||
3-meter CCM Mould | Φ10 inches c | 1500-10000mm | 30COMO | |
3-meter CCM Mould | Φ12 inches | 1500-10000mm | 30COMO | |
3-meter CCM Mould | Φ15 inches | 1500-10000mm | 30COMO | |
Power Control Panel | HM-HT-D | |||
Heat Treatment | 12.5 meter Pit furnace | |||
Production Capacity | 80-120 pieces/8 hours shift | |||
Pipe Size Conversion | ||||
Dia (inch) | Outer Dia(mm) | Wall Thickness (mm) | Length(mm) | Weight(kg) |
Φ3 | 86±1.0 | 4.3-0.7 | 3000±10 | 24.6 |
Φ4 | 111±1.0 | 4.4-0.7 | 3000±10 | 34.4 |
Φ5 | 137±1.5 | 4.8-1.0 | 3000±10 | 41.9 |
Φ6 | 162±1.5 | 4.8-1.0 | 3000±10 | 51.2 |
Φ8 | 214±1.5 | 5.8-1.0 | 3000±10 | 81.9 |
Φ10 | 268±1.8 | 6.4-1.2 | 3000±10 | 113.6 |
Φ12 | 318±0.18 | 7.0-1.2 | 3000±10 | 148.0 |
Application : The CCM is used for Production of Grey or Ductile Iron Pipes
