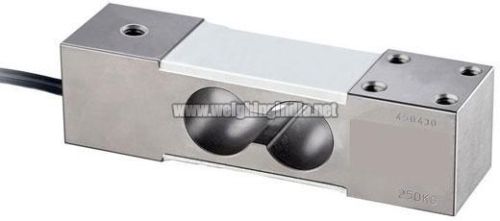

Weighing Scale Load Cell (SS 310), For Industrial Use, Certification : ISO Certified

MaterialAlloy Steel
CertificationISO Certified
Power SourceElecrtric
Automation GradeAutomatic
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Number Of FlowerLoad Cell
MaterialAlloy Steel
CertificationISO Certified
ApplicationIndustrial Use
Power SourceElecrtric
Output1mv, 2mv
Rated Load100kg
Automation GradeAutomatic

Weighing Scale Load Cell (SS 310), that we offer, is widely used in various industrial applications. The weighing scale load cell is light weight and compact. Our offered weighing scale load cell is known for its accuracy and reliability.

Features:

Single point
Low profile
Tool steel construction for harsh application.
Compact, light weight & economical
Capability with minimum error for off-centre loading
Supports platform scale with size 600 x 600 (mm)

Applications:

Smaller sized economical platform scales
Check weighers
Bag weighers

Specifications

Standard Capacities	75, 100, 120, 150, 200, 250, 300, 350, 400 kg
Excitation Voltage	10 VDC- Maximum 15 VDC
2.0 m V/ V	2.0 m V/ V
Non - Linearity	< 0.025% FSO
Hysteresis	< 0.02% FSO
Non-Repeatability	< 0.01% FSO
Creep (30 minutes)	< 0.03% FSO
Zero Balance	1.0% FSO
Input Resistance	390 15 Ohms
Output Resistance	350 5 Ohms
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Cable Length (4 Core Screened)	3 mtr. Minimum
Safe Overload of Rated Capacity	150.00%
Ultimate Overload of Rated Cap.	250.00%
Temp. Compensated Range	0-60 C
Temperature Effect on Output	< 0.0015% FSO/ 0 C
Temperature Effect on Zero	< 0.0020% FSO/ 0 C
Eccentric Load Effect	< 0.02% of FSO at 1/3 rated load placed within the specified sized platter
Deflection	< 0.5 mm at FSO
Tightening Torque	5 m kg.
Finish & Construction	Electroless Nickel Plated Tool Steel
Environmental Protection Class	IP65
