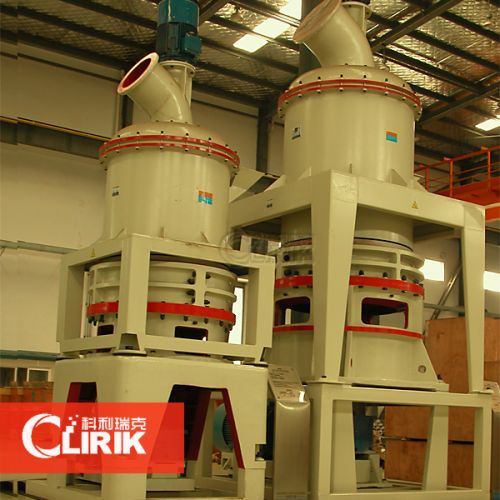

Grinding Mill Machine, Brand Name : Clirik, Certification : CE&ISO

Raw materials: quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
Capacity: 1-20th
max feeding size: 15-35mm
application: suitable for processing various non-flammable and non-explosive mineral materials with moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc
shipping ports: shanghai, china
delivery: 15 days after received the deposit
high pressure grinding mill micro powder grinding mill
raymond mill ball mill coarse powder hammer mill
working principle of ygm series grinding mill:
the standard configuration of ygm raymond grinder machine consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include crusher, bucket elevator, feeder.
big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.
