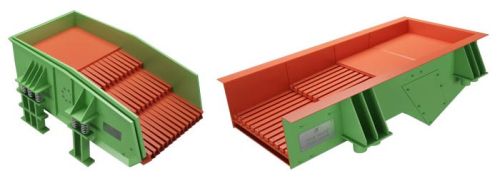

Grizzly Vibrating Feeder

Precisely engineered, Grizzly Vibrating Feeder promises continuous, uniform feeding of raw material into the crusher in Mineral & Mining Industry, Construction materials, Silicate, Power sector, Steel sector, Cement Industry, Chemical Industry, and Foundries. Grizzly Vibrating Feeder is powered by Vibro motors for maximum efficiency & output.
Features

• Custom designed & built

• Designed for maximum efficiency & output

• Heavy duty unbalanced Vibro motors

• Adjustable amplitude of vibration

• Heavy duty, rugged construction

• Stress Relieved

• Adjustable & replaceable grizzly bars

• Easy to maintain & operate

• Abrasion resistant lined bed and side plates

• Abrasion resistant grizzly bars

• Extend crusher life by reducing wear

• Increase crusher efficiency

• Reduce crusher power consumption

• Rugged single mass technology

• No exciter springs required

• No natural frequency tuning required

• Easily replaceable grid bars

• Stepped deck grids enhance screening efficiency

• Driven by world class electromechanical drives

• Designed to meet your exact requirements

• Wide range of achievable capacities

Working Principle
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
Vibratory Motor

• The Grizzly feeder is suitable to feed primary jaw crushers, selecting the large sizes which require primary crushing, the smaller sizes and any fines which must be eventually rejected.
• The Grizzly vibro feeder consists of a very large vibraring body made of thick plate with inside lining of anti-abrasive plate. The Grizzly vibro feeder is driven by two or four vibrating motors. The vibro feeder(which may either be placed on a steel or concrete base) rests on spring

Calculation of Grizzly Bar Section Area Required
The area needed for the Grizzly Bar Section may be calculated from the following empirical formula and tables. The resulting figure provides a guide to the Grizzly Feeder model required.
Grizzly Bar area (m²) = Tonnes per hour of undersize Capacity/m² A x Factor B x Factor C
Electrical Control Equipment

• Grizzly Feeder may be supplied complete with Variable Feed Rate Controllers. They incorporate the very latest frequency inverter technology for applications that require frequent adjustment of the feed rate.
• For other applications twin vibrator phase reversal braking starters which enable the unit to stop within seconds may be suitable. The number of stop/ starts that may be made per hour is limited depending upon conditions
• Consult us about your Electrical Control Equipment requirements

Industries Using Grizzly Feeders

• Power

• Mining

• Aggregates

• Recycling

• Concrete

• Quarries

Key Benefits

• Robust construction

• Adequate springs are selected to withstand heavy shock loads due to feed material.

• Wear plates are provided on all exposed surfaces for long life.

• Heavy duty exciters to induce large stroke and high force required to deliver run of quarry from dump hopper.

• Simple eccentric drive system.

• Easy maintenance.

• Easy to adjust stroke length by adding or removing the weights

• Easy to adjust stroke angle

Applications
Metallurgy, Coal Mine, Mineral Separation, Gold Ore Processing, Artificial Sand, Building Waste Recycling, Building Material, Chemical Industry and Abrasive Industry, etc.
