Ground Chicken Dung Cleaning System

We are offering ground chicken dung cleaning system
application
1) cleaning chicken dropping for large-scale and medium-sized farm
2) removing manure from manure pits in close or open chicken farm.
specification
1) components:driving system, scraper, angle pulley, stroke limitation, control panel.
2) working for 2 rows or 3 rows one time
matched power 1.5-3kw
maximum traction work force 28000-32000n
wiper clean rate â‰Â¥95%
walking speed 6-10mmin
manure scraper width 20mmless than the hollow
weight 350kg
working process
manure scraper connects with the rope, the rope connects with the electric motor, when you turn on the electric motor, the manure scraper will go from the beginning of the hollow to the end, so the dung will be dealed all of the manure will be at the same side.
the hung hollow design
deep: about 30cm
width: it is as the bottom of the frame of the cage system, as the distance between the two legs of the cage .
Length: it is as the chicken house, the pool is outside the chicken house .because the hollow is 30cm deep,
as usual it will be build on the level , so it is easy to clean the pool at last
farm using
fittings

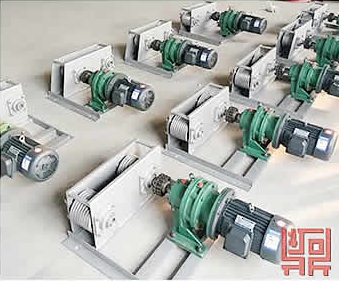

driving system, scraper, angle pulley, stroke limitation, control panel
packaging & delivery
packing :wooden casedelivery lead time : 7 daysminimum order : 5 setssupply ability : 100 sets per day
