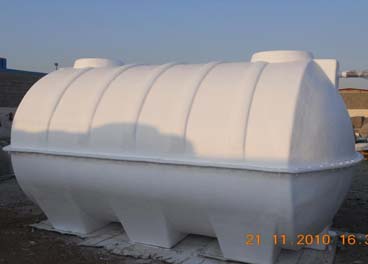

GRP CYLINDRICAL MOLDED WATER TANK

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

20,000 U.S GALLON GRP CYLINDRICAL WATER TANK EFG make fiberglass potable and industrial water tanks are high quality standards, which are manufactured. They are strong, durable and can resist any....

View More Details

Send Enquiry

Company Information

Eissa Fiber Glass LLC

Ajman

View Number

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

20,000 U.S GALLON GRP CYLINDRICAL WATER TANK
EFG make fiberglass potable and industrial water tanks are high quality standards, which are manufactured. They are strong, durable and can resist any bacterial algae and fungus to provide clean drinking water. EFG tanks are made of best quality food grade polyester resin. These tanks are available from a wide range of capacity. The water tanks are manufactured under strictly hygienic conditions and are designed to ensure that there is no accumulation of dirt, dust and algae formation on the contact skin of the tank with water. EFG make tanks are not affected by ultra violet rays and have excellent weathering properties and easy maintenance.

Specifications The following manufacturing specifications are generally followed by “Eissa Fiber Glass LLC".

Gelocat of 0.5mm thickness to provides chemical resistance. Our general color of gel coat is white. Any other color if required, available on request.
Resin content 60-70% by weight to assist reinforcement for chopped strand mat.
Resin content 45-55% to provide strength and rigidity for woven roving.
E-glass surface mat (450gms/m2) or synthetic layers are used consisting of approximately 90% resin by weight. Thickness of the reinforced layers is generally 0.5mm. This protective barrier against corrosion.
Gelcoat finishing on outside the tank.
For joints provided GRP putty and chopped stand mat cover with Gelcoat.
Structure of the tank includes 1mm thick Gelcoat interior finishing, a surface mat is provided to protect inner coating. Adequate layers of fiber-mat and woven roving layers will be applied according to the thickness using required resin and chemicals to suit the usage of tank. The cover coat will be given with waxed coating to get clear look.
The external surface of tank is top coated with wax added UV top coat polyester resin. Tank body (Laminate) thickness is manufacture by using UV resistance polyester resin. These provided UV resistance to the tanks.
Tanks have special layer inside the tank wall using vinylister resin with fiber which provides protection as a chemical resistance.
After building up the tank wall layers of fiber glass chopped strand mat impregnated with polyester resin applied. Further laminations are built on this special layer to complete the tank wall thickness.
Tank includes inlet, outlet, overflow, grain, vent and manholes. All tanks will have provisions for fixing standard connectors .Connectors will be provided along with tank only on request.

Features
