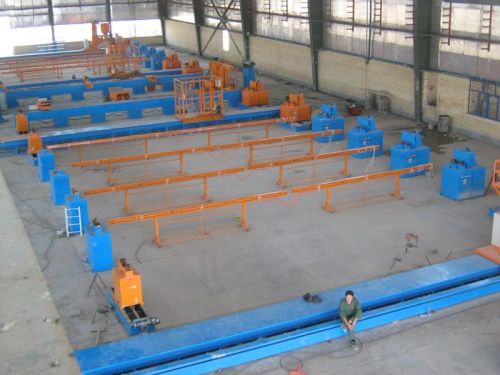

GRP Pipe Production Line

Qfw-2500vi frp pipe production line
1. introduction
fw-2500vi computer control winding machine is adopted advanced wet continual fiber winding process, it is a new product developed in china, and its function property has been improved and developed for many times. The machine has very reasonable structure, creative design, and it operates easily, the interface between operator and machine is reasonable.
2. the main parameters
2.1  the total power: 85kw
2.2  the maximum diameter can be manufactured: dn200-2500mm
2.3  the effective length of the pipe:12m
2.4  the productivity:1000kgh
2.5  the baking board’s temperature of curing station:105-160 degree centigrade
2.6  the maxi speed of conveying roving: 100mmin
2.7  the width of the roving sheet:200mm
2.8  the winding angle: 30°—90°
2.9  the maxi speed of run: 90mmin
2.10  the maxi mould-unloading force:83t
2.11  the rated drawing force of the capstan:5t
2.12  the rated pressure of the hydraulic system:16mpa
note: if adds the infrared ray baking boards, the total power: 135kw
3. the major characteristics of the equipment
3.1 the sophisticated configuration: we developed the accessories and the program by ourselves and committed to have the superior configuration, and the servo motor, the servo driver, the transducer, the photoelectric encoder are adopted siemens, germany. The industrial control computer is made in yanhua corporation, taiwan, which assures the liability, stability, and precision of the while machine operating. The menu is displayed in chinese and english, the interface between the operator and the machine is reasonable, it is easy to operate and the working condition can be adjusted freely through the rotary knob on the panel board.
