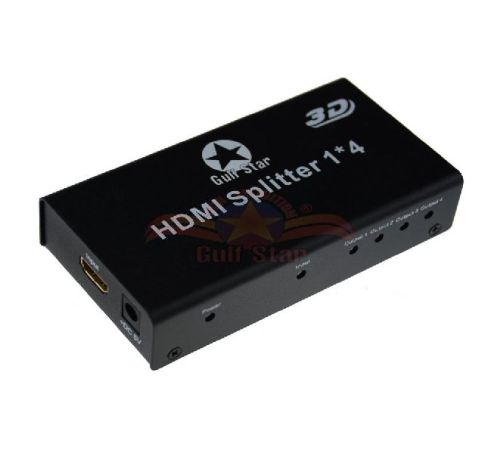

GS-848 HDMI Splitter 1X4

Operating Humidity range5 to 90% RH (No Condensation)
Max baud rate6.75Gps
Input/Output TMDS Signal0.5~1.5 Volts p-p
Input/output DDC Signal5 volts p-p (TTL)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

HDMI VersionHDMI 1.3b
Max bandwidth225MHz
Operating Temperature range- 15 to + 55 Celsius degree
Operating Humidity range5 to 90% RH (No Condensation)
Power adapter formatInput - AC(5OHZ,60HZ) 100V-240V;Output: DC5V
Power Supply5V
Output cable distance≤25m AWG26 HDMI 1.3 standard cable
Port indicator of power inputIndicator of HDMI input
IndicatorIndicator of HDMI output HDMI output ports
Signal Inputs/ Output1 input , 4 outputs
Input/Output TMDS Signal0.5~1.5 Volts p-p
HDCP VersionHDCP 1.2
Support audio formatDTS-HD/Dolly-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Input cable distance≤15m HDMI AWG26
HDMI ConnectorType A 19 pin female
Input/output DDC Signal5 volts p-p (TTL)
Name of the product1× 4 HDMI Splitter
HDMI input portPower input
Accessories with the Machinea) 5V power adapter b ) one pc of manual
Max baud rate6.75Gps
Support video color format24bit/deep color 30bit 36bit
HDMI Resolution24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max working current1.4A

The 1×4 HDMI Splitter uses a single HDMI sources, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Connecting and Operating :
