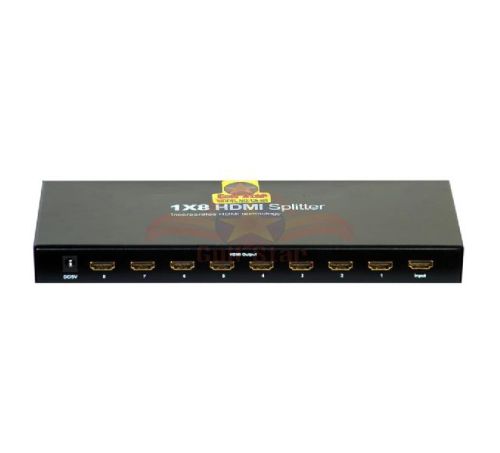

GS-888 HDMI Splitter 1X8

Power consumption10 watts(Maximum)
Max working current1.4A
Operating Temperature range- 15 to + 55 Celsius degree
Transmission Distance15m(Maximum) over standard HDMI cable/26AWG
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Input/output DDC Signal5 volts p-p (TTL)
Name of the product1× 8 HDMI Splitter
Power consumption10 watts(Maximum)
Support audio formatDTS-HD Master Audio Dolby true-HD etc.
Dimension270×110×27.5mm
Max baud rate6.75Gps
Operating Temperature range- 15 to + 55 Celsius degree
HDMI VersionHDCP1.3
Operating Humidity range5 to 90% RH (No Condensation)
Power adapter formatInput - AC(5OHZ,60HZ) 100V-240V;Output: DC5V
Signal Inputs/ Output1 input, 8 outputs
Support video color formatXv-YCC/deep color 36bit
Input/Output TMDS Signal0.5~1.5 Volts p-p
Max working current1.4A
Transmission Distance15m(Maximum) over standard HDMI cable/26AWG
HDMI ConnectorType A 19 pin female
Support video formatDTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D video

Our product range is secured properly with premium packaging materials that protect the products from mechanical damage and ensure the product delivery is safe and without damage. We have developed several offline as well as online options for the convenience of clients to ensure faster trade. The GS-888 HDMI Splitter 1X8, delivered by us, is largely appreciated for its high-performance and long service life.

Features :

HDMI TM (1.3b with 3D&1080p )
Distributes 1 HDMI source to 8 HDMI Displays simultaneously.
Supports all the mandatory and several optional 3D formats
Supports High Definition Resolutions : 1080p @ 60HZ, 720p/1080i @ 120Hz
Supports Digital Audio Format, such as High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio
DC 5V Power

Panel Descriptions :

Indicator of HDMI Input. When a HDMI equipment is connected, the corresponding LED lights.
Indicator of HDMI output. When a HDMI equipment is connected , the corresponding LED lights.
Power ON/OFF. Press the up/down button to open/close the device

Rear Panel :
