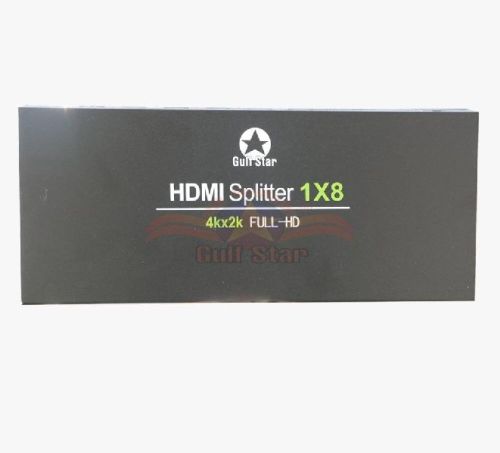

GS-989 HDMI 8 Way Splitter 4K

Support video formatDTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D video
Signal Inputs/ Output1 input, 8 outputs
Operating Humidity range5 to 90% RH (No Condensation)
HDMI ConnectorType A 19 pin female
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Support video formatDTV/HDTV:480i/576i/480p/576p/720p/1080i/1080p/3D video
Support audio formatDTS-HD Master Audio Dolby true-HD etc.
Input/output DDC Signal5 volts p-p (TTL)
Max baud rate6.75Gps
Operating Humidity range5 to 90% RH (No Condensation)
Support video color formatXv-YCC/deep color 36bit
Power consumption10 watts(Maximum)
Input/Output TMDS Signal0.5~1.5 Volts p-p
HDMI ConnectorType A 19 pin female
Signal Inputs/ Output1 input, 8 outputs
HDMI VersionHDCP1.3
Max working current1.4A
Power adapter formatInput - AC(5OHZ,60HZ) 100V-240V;Output: DC5V
Name of the product1× 8 HDMI Splitter
Operating Temperature range- 15 to + 55 Celsius degree
Transmission Distance15m(Maximum) over standard HDMI cable/26AWG
Dimension270×110×27.5mm

We make sure that our inputs are in conformation with the international quality standards and free from all sorts of impurities in order to offer quality-approved products to the buyers. Owing to our huge logistics network, timely delivery of the placed orders is always executed!

Features :

HDMI TM (1.3b with 3D&1080p )
Distributes 1 HDMI source to 8 HDMI Displays simultaneously.
Supports all the mandatory and several optional 3D formats
Supports High Definition Resolutions : 1080p @ 60HZ, 720p/1080i @ 120Hz
Supports Digital Audio Format, such as High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio
DC 5V Power

Panel Descriptions :

Indicator of HDMI Input. When a HDMI equipment is connected, the corresponding LED lights.
Indicator of HDMI output. When a HDMI equipment is connected , the corresponding LED lights.
Power ON/OFF. Press the up/down button to open/close the device

Rear Panel :
