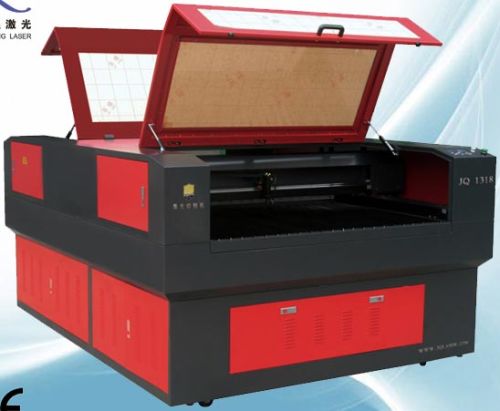

Gsi 200w Co2 Laser Cutting Machine

1. Feature of jq-1318 laser cutting machine,
1) configure high power 200w laser tube, which is very famous gsi made in uk. The life is very long;
2) the machine is able to cut 3cm die board wood with high speed. It is very popular in die board making and thick wood processing industry;
3) configure high power water chiller, that can control the water temperature automatically;
4) adopts precision seamless ball and lead screw for movements along x,y axis.
2. Parameter of jq-1318 laser cutting machine
model jq-1318
working area 130cm*180cm
laser power 200w
laser type co2 sealed laser tube,water-cooled
laser output 1-100%software setting
resetting positioning accuracy ≤±0.01mm
power supply 220v/50hz , 110v/60hz
operating temperature 0 - 45°c
operating humidity 5 - 95%
min. Shaping character english 1.0 x 1.0mm
graphic format supported bmp, plt, dst, dxf, ai
software supported coreldraw, photoshop, autocad,tajima
transmission ball screws
driving system japan servo motors
net weight 1000kg
3.the basic configurations of the laser cutting machine
1).water chiller
2).air pump
3).exhaust fan
4). Knife worktable ( for hard material) or honeycomb worktable( for soft material)
4.applicabe material
acrylic, perspex, wood, plywood, and other non-metals, and steel
