GSM 3G Power Distribution Monitoring System

We are offering power distribution monitoring system,

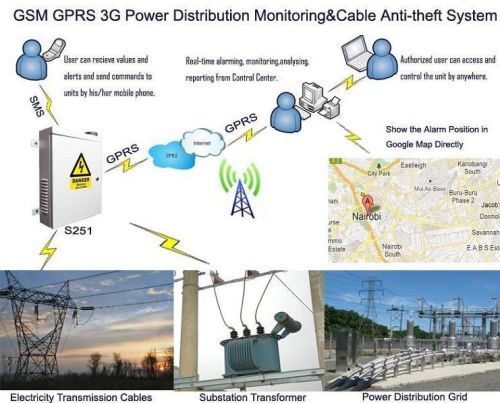

the gsm 3g power distribution monitoring system is not only a smart power meter for measuring the power distributor voltage, current, factor, watts, frequency, active power, reactive power, when over current or exceed the pre-set value, will alarm immediately. The gsm 3g power distribution monitoring system can be used for monitoring the oil temperature, oil level of the transformers. Gsm 3g wireless power line monitoring.the gsm 3g power distribution monitoring system also can be used as a wireless security alarm system for the transformers, e.g.: theft-proof, fall down, and so on.1. arm® cortex™-m4 32 bit risc core, 72mhz inside, rtos system;
2. quad-band gsm frequency,3g, supports sms and voice and gprs3g communication;
3. programmable by sms commands or pc configurator via usb;
4. abc phase power up it directly, inbuilt large capacity rechargeable backup battery;
5. suitable for three-phase four-wire system, input voltage: 100~400v, input current:0~5a;
6. monitoring abc 3 phase input over current, over voltage , factor, watts, active power, reactive power exceeds alarm;
7. power input pt,ct rate are programmable;
8. accuracy of current, voltage is 0.2 class, power and watts is 0.5 class, sampling is 0.1seond.
9. large internal memory can save 1000 event historical data;
10. 6 analog inputs, 16bits, supports 0-5v, 0-20ma, 4-20ma;
11. 2 digital outputs, 5a30vdc,5a250vac, can be program to events or turn onoff by sms;
12. 8 digital inputs, ncnoeol type, when digital input recover can alert by sms;
13. io ports with opto-isolated and lightning protection;
14. provide one 5vdc@1a power for additional device;
15. equips lcd to display the real time data and for programming;
16. 2 ip data centers, supports gdw 376.1—2009 protocol over gprs3g network;
17. 1 rs485 can be used as data transparent transmission for additional intelligent meters or plc, with 15kv esd protection;
