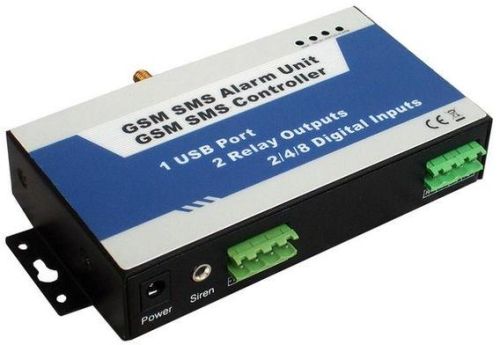

    GSM Automation Controller

    ₹ 4,450 / 70 70 Piece
    Get Latest Price
    • MOQ5 Piece
    • Output Type2 Relay Output, 240VAC@3A, Relay inside.
    • GSM Antennav50 Ω SMA Antenna interface, Cable type: Gain:3dBi cable-length:3-5meters connector :SMA Portable antenna: Gain:2dBi height: 5cm connector: SMA
    • DC Power supplyStandard adapter: DC 12V/1.5A
    • Temperature range-20°C ~ +60 °C
    • Supply TypeManufacturer, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 10 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 2009

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Weight320g
    • DC Power supplyStandard adapter: DC 12V/1.5A
    • Exterior dimensionLXWXH 153x86x28mm
    • Input Type2 Dry Contact, NC,NO,EOL.
    • SerialUSB Port
    • GSM Antennav50 Ω SMA Antenna interface, Cable type: Gain:3dBi cable-length:3-5meters connector :SMA Portable antenna: Gain:2dBi height: 5cm connector: SMA
    • Backup-battery3.7V 1200MAh LI-ION
    • GSM FrequencyDefault: 900/1800/1900Mhz , Optional: 850/1900/1800/1900Mhz
    • SIM CardSupporting 3V SIM Card
    • Output Type2 Relay Output, 240VAC@3A, Relay inside.
    • Temperature range-20°C ~ +60 °C
    • Humidity rangeRelative humidity 20~95% (condensation free)
    • Power CurrentMax:500mA Type :50mA

    We are offering rtu-540 gsm automation controller pump controller water alarm
    ☆rtu-540 suitable for:
    1. Security alarm system applications;
    2. Supervision and monitoring alarm systems;
    3. Automatic monitoring system;
    4. Vending machines security protection;
    5. Pumping stations, tanks, oil or water levels;
    6. Buildings and real estate;
    7. Weather stations;
    8. River monitoring and flood control;
    9. Oil and gas pipelines;
    10. Corrosion protection
    11. Temperatures, water leakage applications;
    12. Wellheads, boat, vehicle;
    13. Energy saving, street lights control system;
    14. Valve controls;
    15. Transformer stations;
    16. Unmanned machine rooms;
    17. Control room application;
    18. Automation system, m2m;
    19. Gsm access control system, gsm gate opener, etc.
    features:
    1 relay output (240vac@3a) can be switched onoff by sending a sms text;
    2 alarm logic inputs, nc or no and eol is optional;
    3 sms alert numbers and 5 auto-dial numbers can accept to the alarm message;
    two-way voice communication by external microphone and speaker;
    supports armed, disarmed, inquiry status, switch on or off relay output by sms commands;
    password protected, prevents unauthorized user;
    can be set up and programmed from pc programmer by usb cable;
    time stamped alarm messages;
    backup rechargeable battery inside, can work for 24hours when power off;
    can be operated from anywhere, no distance limit;
    based on gsm network, applied to many applications.


    Additional Information

    • Payment Terms T/T, Western Union
    • Port of DispatchShenzhen
    • Packaging DetailsStandard Package list: Mainframe * 1 Power supply adapter * 1 User Manual * 1 (RS232) CD (Pc programmer tool) * 1 GSM Antenna * 1 Package Size: 75mm * 50mm * 16mm(W*D*H) Weight: 500g Optional Accessories: Water Overflow Level Sensor, Oil Overflow Level Sensor, Water Leak Sensor, Temperature Sensor, Door Sensor, PIR Motion Sensor, Smoke Sensor, Gas Leak Sensor, Glass Break Sensor, Shock Sensor, Power failure sensor, etc.
    • Delivery TimeDelivery time is about 3-5 workdays after we confirm the payments.
