Contact SupplierWe offer screw gps gsm combo antenna
product name

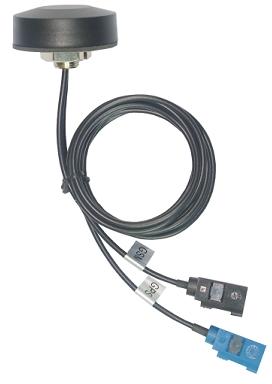

gps+gsm combined antenna
model
hya-0822gps28b
descriptions
it is applied to car navigation, logistics positioning and so on.
electrical specification
frequency range-mhz
1575.42
824-9601710-2170
bandwidth-mhz
10
136460
gain-dbi
28
2
vswr
≤1.5
≤2.0
dc voltage -v
3-5
----
noise figure -dbi
≤1.5
----
nominal impedance-ω
50
polarization
rhcp
vertical
max. Power-w
50
mechanical specification
cable length -m
3
connector
sma or customized
antenna dimension-mm
60×51×15.5
weight-g
150
mounting
magnet
temperature-°c
-40~+60
humidity
5~95
waterproof
ip67.
