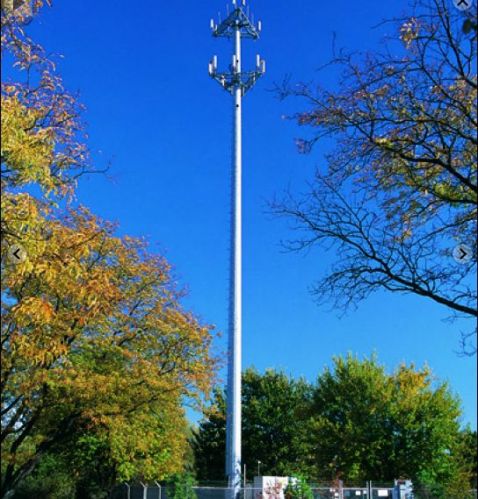

Communication tower monopole
our communication tower consists of tower body and platform. There is an opening on the bottom level of tower body and another opening up to the same level with platform. The ladder is fixed to the handrail of platform. Mono pole is characterized by the ladder and feeders which are installed inside the tower body. Protected from the wind and rain and other natural environmental destructive factors, it is convenient for maintenance and long-life use.
Parameter:
1.height: 10m ~ 60m.
2.max length per section: 14 m
3.thickness: 2.5mm ~ 30 mm
4.shape: conical or polygonal tapered
5.connection: connected by flanges or splice
6.ladder: installed inside
7.feeder system: inside
8.platform :0-3 levels
9.material: q235ba36a283 m gr.c ss400s235 jr st 37-2 fe 360
10.finish: hot dip galvanization, blasting, powder coating, painting.
11.galvanization standard: astm a123 en iso 1461
12.welding standard: aws d 1.1 bs en 1011-1, bs en 1011-2
design: we have our standard pole with our design, oem and odm is also acceptable
packages: standard seaworthy
delivery time: with two weeks after confirm the order.
