    GSM Rtu Controller

    ₹ 3,060 / 50 50 Piece
    Get Latest Price
    • MOQ5 Piece(s)
    • Temperature range-20°C ~ +60 °C
    • Output Type2 Relay Output, 240VAC@3A, Relay inside.
    • GSM FrequencyDefault: 900/1800/1900Mhz , Optional: 850/1900/1800/1900Mhz
    • Exterior dimensionLXWXH 153x86x28mm
    • Supply TypeManufacturer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 10 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 2009

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Power CurrentMax:500mA Type :50mA
    • Output Type2 Relay Output, 240VAC@3A, Relay inside.
    • DC Power supplyStandard adapter: DC 12V/1.5A
    • Relative humidity 20~95% (condensation free)320g
    • Humidity rangeRelative humidity 20~95% (condensation free)
    • SIM CardSupporting 3V SIM Card
    • GSM FrequencyDefault: 900/1800/1900Mhz , Optional: 850/1900/1800/1900Mhz
    • Input Type4 Dry Contact, NC,NO,EOL.
    • Temperature range-20°C ~ +60 °C
    • Exterior dimensionLXWXH 153x86x28mm
    • Backup-battery3.7V 1200MAh LI-ION
    • GSM Antenna50 Ω SMA Antenna interface, Cable type: Gain:3dBi cable-length:3-5meters connector :SMA Portable antenna: Gain:2dBi height: 5cm connector: SMA
    • Parameter itemReference scope
    • SerialUSB Port

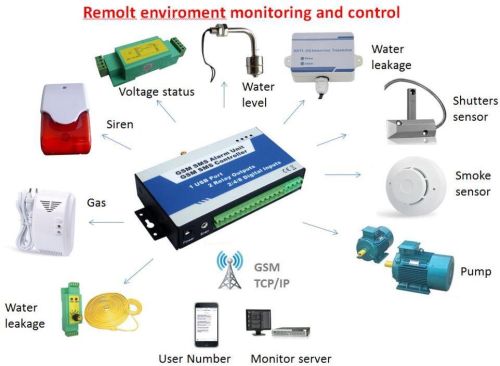

    We offer remote controller 8 digital inputs gsm rtu controller rtu542. rtu-542gsm automation controller
    rtu-542 suitable for:
    1. Security alarm system applications;
    2. Supervision and monitoring alarm systems;
    3. Automatic monitoring system;
    4. Vending machines security protection;
    5. Pumping stations, tanks, oil or water levels;
    6. Buildings and real estate;
    7. Weather stations;
    8. River monitoring and flood control;
    9. Oil and gas pipelines;
    10. Corrosion protection
    11. Temperatures, water leakage applications;
    12. Wellheads, boat, vehicle;
    13. Energy saving, street lights control system;
    14. Valve controls;
    15. Transformer stations;
    16. Unmanned machine rooms;
    17. Control room application;
    18. Automation system, m2m;
    19. Gsm access control system, gsm gate opener, etc.
    features:
    1 relay output (240vac@3a) can be switched onoff by sending a sms text;
    1 relay output (240vac@3a) can be switch on 4minutes if any inputs triggered;
    8 alarm logic inputs, nc or no and eol is optional;
    3 sms alert numbers and 5 auto-dial numbers can accept to the alarm message;
    two-way voice communication by external microphone and speaker;
    supports armed, disarmed, inquiry status, switch on or off relay output by sms commands;
    password protected, prevents unauthorized user;
    can be set up and programmed from pc programmer software by usb cable;
    time stamped alarm messages;
    backup rechargeable battery inside, can work for 24hours when power off;
    can be operated from anywhere, no distance limit;
    based on gsm network, applied to many applications.


    Additional Information

    • Payment Terms T/TWestern Union
    • Port of DispatchShenzhen, Guangdong, China
    • Delivery TimeSample order delivery time is about 2-4 workdays after we confirm the payments.
