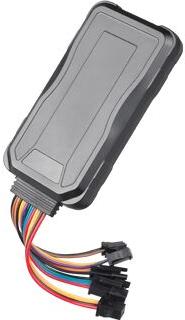

GT06E Vehicle Tracker

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Supplying wide array of products, we successfully make deliveries within the dedicated time span. Only high-quality raw materials have been used for the production of our entire range. We check the raw materials against varied quality parameters before procurement. The GT06E Vehicle Tracker, made available by us, is manufactured using the high-grade materials.

Feature :

Remotely cut off fuel/power - Compel the vehicle to stop by breaking off the fuel connection
WCDMA & GSM - Use 3G network (outstanding coverage, no 2G worries)
ACC detection for ignition status - Be aware of the ignition status whenever you need
SOS emergency call - Thumb sized button allowing urgent call during an emergency case
Configurable tracking modes - Location uploaded following fixed distance, time interval, preset cornering Multiple alarms - Instant alert for vibration, over speed, power off, geo-fence
Multiple analog & digital I/O - Monitor and control external application via inputs/outputs
Tracked by - SMS, APP, Web - Reports location in real time through different interfaces

GSM Specification

Communication System	Wcdma/Gsm
Frequency	Wcdma 850/900/1900/2100mhz Gsm 850/900/1800/1900mhz
Networks	Wcdma /EDGE/GPRS
Output Power	Class 3 (24dBm +1/-3dB) For Umts Bands Class 4 (33dBm ±2dB) For Gsm 850/900mhz Class 1 (30dBm ±2dB) For Gsm 1800/1900mhz

GPS Specification

Gps	Mtk High Sensitivity Gps Chip
Frequency	L1,1575.42mhz C/A Code
Channels	66
Location Accuracy	<10 Meters
Tracking Sensitivity	- 165dbm
Acquisition Sensitivity	- 148dbm
Location Time	Hot Start :≤1sec(Open Sky) Cold Start : ≤38sec(Open Sky)

Function & Package

Monitoring Scope	≤ 5M
Antenna	Built-In Gps Ceramic Antenna; Gsm Quad-Band Antenna
Led Indicator	Gps(Blue), Gsm(Green), Power(Redï)
Operating Voltage	9-36vdc
Operating Temperature	450mah/3.7 industriall Lithium Polymer Battery
Operating Humidity	5%~95% ~Non-Dense
Built-In Battery	450mah/3.7 industrial Lithium Polymer Battery
Standby	4 Hours
Dimension	98(L) ×52.0 (W) ×15.0 (H) Mm
Weight	80g
