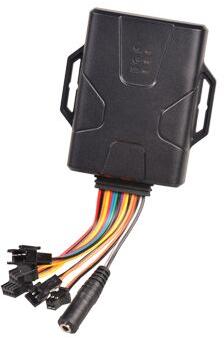

GT800 Vehicle Tracker

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

We make sure that there will be no damage to the products that we deliver to the customers. For this, we use high quality packaging material and hi-tech machines ensuring the same. We are flexible in making deliveries in the committed time span owing to the well-organized and maintained transportation system.
Feature :

GPS+AGPS tracking - Allow the location to be pinpointed in real time or periodically
IP66 dust and waterproof - Water-resistant to ensure stable operation in tough environment
50000 pieces of data storage - Memorize a large amount of gps data for history review
Door status detection - Get instant alert when your car's door is open unexpectedly
SOS emergency call - In case of emergency,press the SOS button to trigger an urgent call
Two-way communication - With MIC and speaker connected, it's easy to realize voice-monitor or two-way audio
Multiple analog & digital I/O - Monitor and control external application via inputs/outputs
Multiple alarms - Instant alert for vibration, overspeed, power off, geo-fence

GSM Specification

Gsm Frequency	850/900/1800/1900 Mhz
Gprs	Class 12, Tcp/Ip
Memory	64mb
Phase Error	Rmspe<5,Ppe<20
Max Output	Gsm850/Gsm900:33±3dbm Gsm1800/Gsm1900:30±3bm
Max Frequency Error	±0.1ppm

GPS Specification

Gps Chipset	Mtk High Sensitivity Chip
Frequency	L1,1575.42mhz C/A Code
Gps Channel	66
Location Accuracy	<10 Meters
Tracking Sensitivity	-162dBm
Acquisition Sensitivity	-148dBm
Ttff (open Sky)	Avg. Hot Start≤1sec Avg. Cold Start≤32sec

Functional & Package

Voice Monitor Range	≤5 Meters
Battery	800mah/3.7v Li-Polymer Battery
Working Voltage/Current	9-36vdc/45ma(12vdc), 28ma(24vdc)
Operating Temperature	-20^oC ~ 70^oC
Dimension	93.0(L)76.0(W)18.0(H)Mm
Weight	91.7g
Accessories	Power Cable, Sos Cable, Microphone, Replay(4pin),2*Relay(5pin), Speaker, I&O Cable
